Installing Steering Wheel

Information

• Turn wheels to straight-ahead position and observe the markings you applied earlier!
• When replacing the steering wheel, replace the internal serration screw and secure according to tightening specifications.

Installation is performed in reverse order. Pay particular attention to the following:

1. When fitting the steering wheel, make sure that the markings between the steering wheel and steering column are aligned.

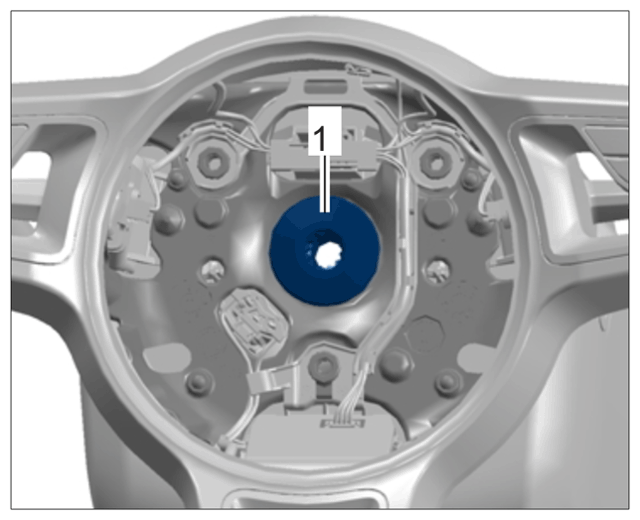

2. Use new  internal serration screw -1-  and tighten as follows:

   > Initial tightening 30 Nm (22.1 ftlb.)  > Final tightening torque angle 90°

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Multiple-tooth screw
