Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screw for starter, top | M12 x 100/rep lace | Initial tightening | 30 Nm (22 ftlb.) | ||
| Screw for starter, top | M12 x 100 | Final tightening | + 105° | ||
| Screw for starter, bottom | M10 x 50 | Tightening torque | 65 Nm (48 ftlb.) | ||
| Nut securing B+ line to starter | Tightening torque | 20 Nm (15 ftlb.) | |||
| Screw securing engine support to crankcase | M10 x 35 | Tightening torque | 55 Nm (40.6 ftlb.) | ||
| Heat insulation on front axle carrier | Hexagon-head bolt M6 x 16 | Tightening torque | 9 Nm (6.6 ftlb.) | ||
| Heat insulation (upper part) to longitudinal chassis beam | M6 hex bolt x 20/applies to two-piece heat insulation! | Tightening torque | 9 Nm (6.5 ftlb.) (6.6 ftlb.) | ||

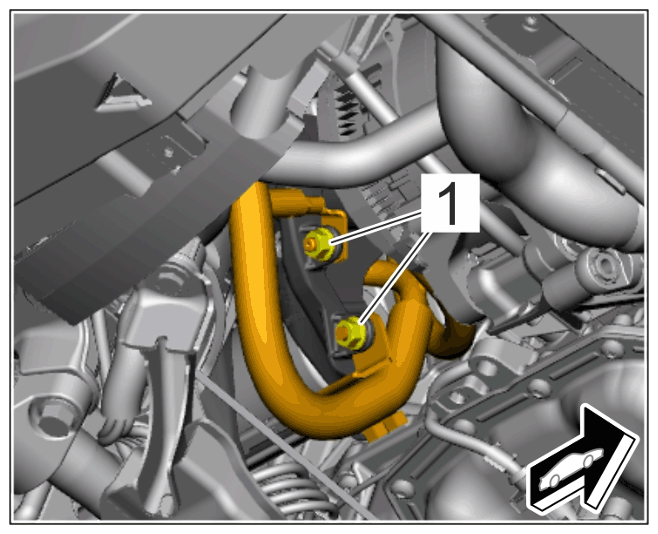

| Ground line on engine carrier | Item 1 | Tightening torque | 20 Nm (14.8 ftlb.) | ||
|
Ground line on engine carrier |
