Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install right engine support -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

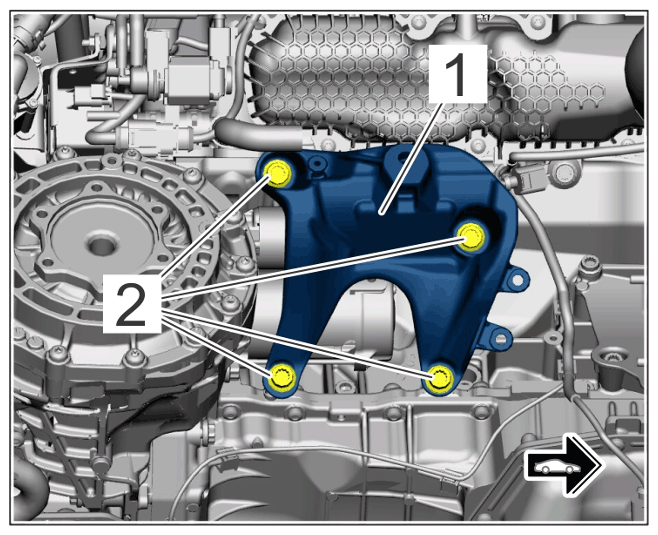

Right engine support
1. 1.1 Tighten screws -2- .
  > Tightening torque 55 Nm (40.6 ftlb.)
Install right engine mount.
> 103519 REMOVING AND INSTALLING ENGINE MOUNTS (V8 BITURBO)
Install right catalytic converter.
> 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER (V8 BITURBO)
Install heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

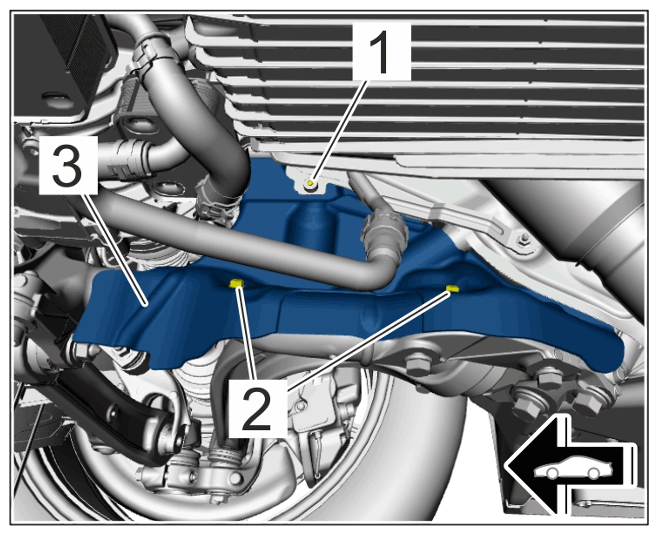

Heat shield for front-axle carrier
1. 4.1 Insert heat shield -3- and fit and tighten screws -1 and 2- .
  -2- > Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)

  -1- > Tightening torque 9 Nm (6.6 ftlb.)
Install generator.
> 272219 REMOVING AND INSTALLING GENERATOR (V8 BITURBO)
Install belt tensioner.
> 137319 REMOVING AND INSTALLING BELT TENSIONER (GENERATOR)
Connect the battery.
> 2X00IN Work instructions after disconnecting the battery
