Removing Starter

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Disconnect starter from engine wire harness.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

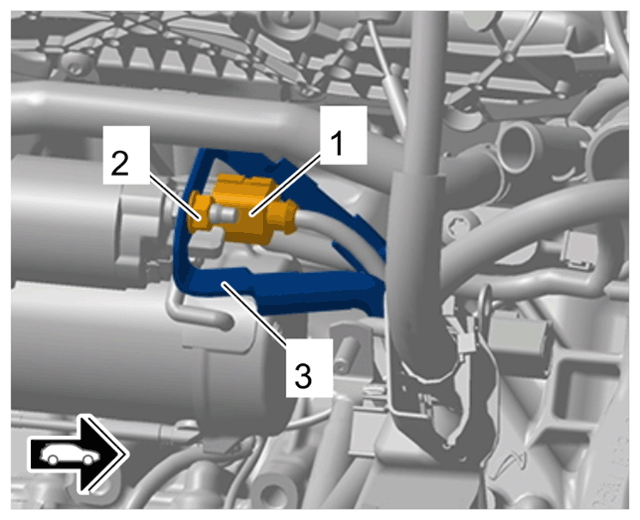

Electric lines for starter
1. 1.1 Secure the starter to prevent it from falling down.
2. 1.2 Release and disconnect electric plug connection -1- .
3. 1.3 Screw off nut -2- and remove B+ line -3- from the starter.
Remove starter -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

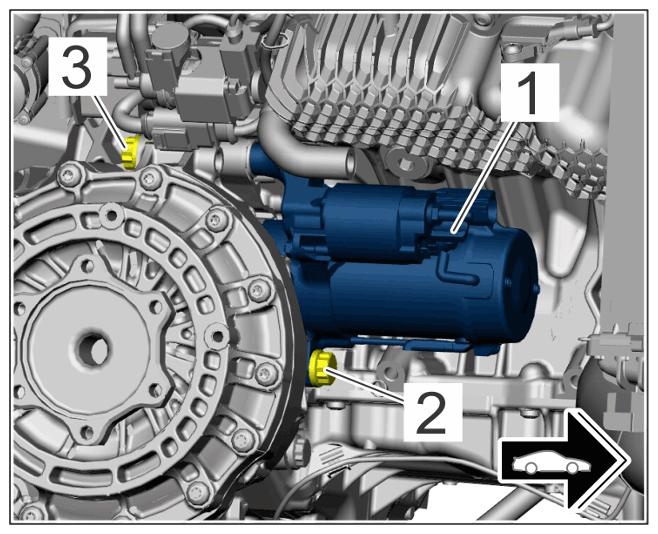

Starter screws
1. 2.1 Unscrew and remove screws -2- and -3- .
2. 2.2 Remove the starter -1- .
Remove locking element in the converter area -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

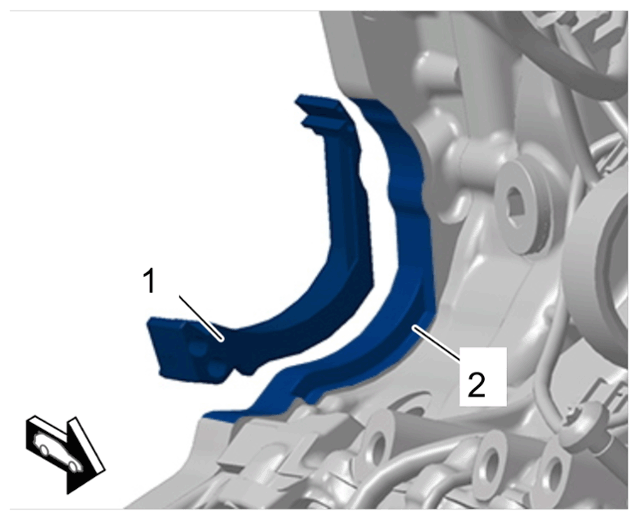

Locking element in converter area
