Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery.

    > 2X00IN Work instructions after disconnecting the battery

  2. Remove belt tensioner.

    > 137319 REMOVING AND INSTALLING BELT TENSIONER (GENERATOR)

  3. Remove generator.

    > 272219 REMOVING AND INSTALLING GENERATOR (V8 BITURBO)

  4. Remove heat shield -3-  .

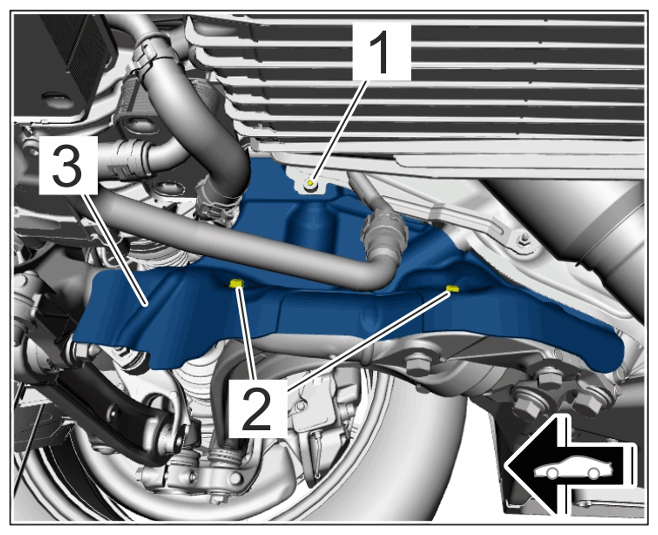

    G15259195Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for front-axle carrier

    1. 4.1  Unscrew screws -1 and 2-  and guide out heat shield -3-  .
  5. Remove right catalytic converter.

    > 267319 REMOVING AND INSTALLING CATALYTIC CONVERTER (V8 BITURBO)

  6. Remove right engine mount.

    > 103519 REMOVING AND INSTALLING ENGINE MOUNTS (V8 BITURBO)

  7. Remove right engine support -1-  .

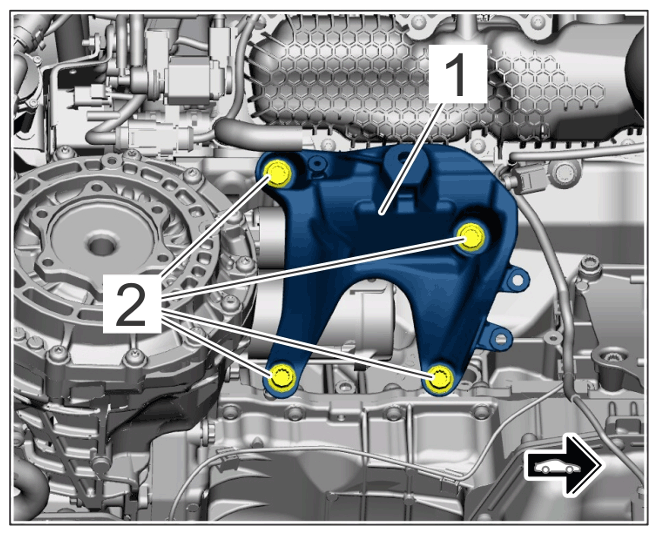

    G15259196Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right engine support

    1. 7.1  Unscrew screws -2-  .
    2. 7.2  Remove right engine support -1-  .
