Removing The Generator

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Disconnect electric connection -1-  and B+ line -3-  from the generator.

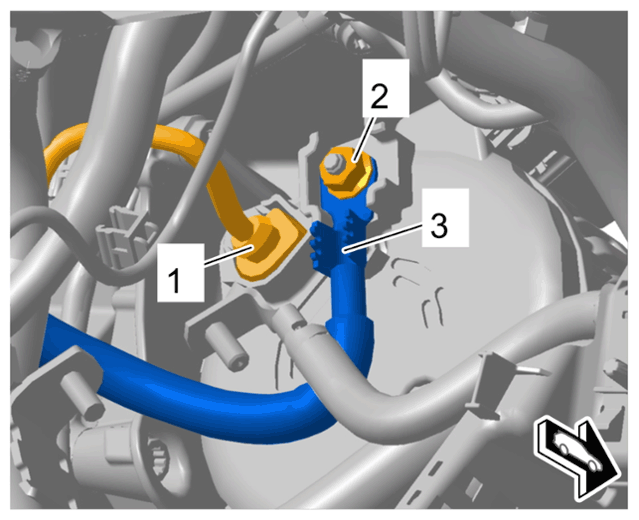

    G15259190Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for generator

    1. 1.1  Unscrew nut -2-  and remove B+ line -3-  from the generator.
    2. 1.2  Release and disconnect electric plug connection -1-  .
  2. Remove generator -1-  .

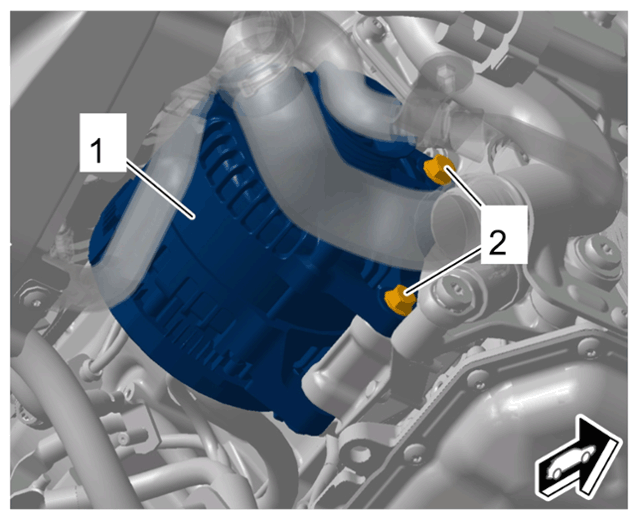

    G15259191Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Generator

    1. 2.1  Unscrew screws -2-  and remove generator -1-  by pulling it downwards.
