Install Generator

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

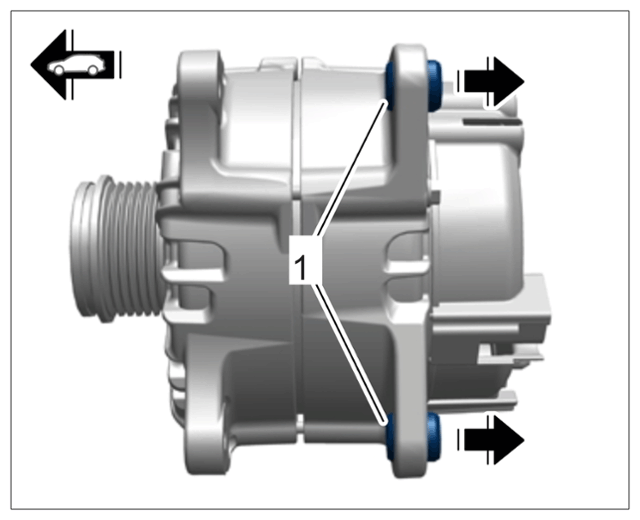

Generator bushes

• Before installing the new generator, push the threaded bushes -1- out by approx. 4 mm.

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  Screws on generator:

      > Tightening torque 20 Nm (14.8 ftlb.)

   2. 1.2  Nut securing B+ line to generator:

      > Tightening torque 20 Nm (14.8 ftlb.)
