Removing Pressure Accumulator

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

CAUTION: Escaping residual air
  • Risk of eye injuries

    → Wear protective goggles.

  1. Remove pressure accumulator -1-  .

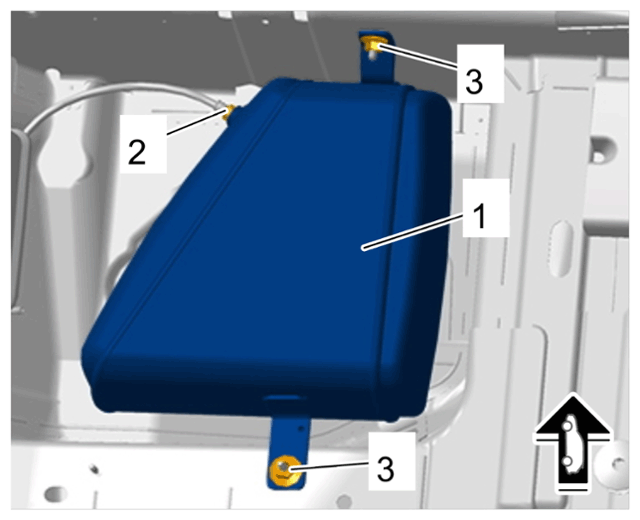

    G15279739Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure accumulator

    1. 1.1  Slowly loosen union nut securing air line to pressure accumulator -2-  . Do not unscrew fully until the residual pressure has escaped!
    2. 1.2  Unscrew nuts securing pressure accumulator to the body -3-  .
    3. 1.3  Remove pressure accumulator -1-  .
