Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
shock absorber mounting on body	Item 2: Hexago n-head bolt, M10x40/replace screws	Initial tightening	50 Nm (36.9 ftlb.)

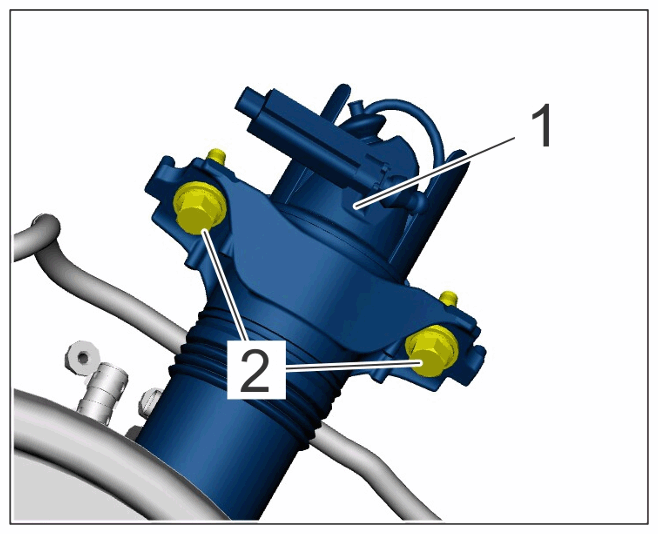

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shock absorber/spring damper to body
Damper mounting to body	Item 2: Hexagon-head bolt, M10x40/Replace screws	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shock absorber/spring damper to body
shock spring absorber to trailing arm	Item 2: Hexagon-head bolt, M12x1.5x 100 and hexagon nut/Always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.) (51.6 ftlb.)

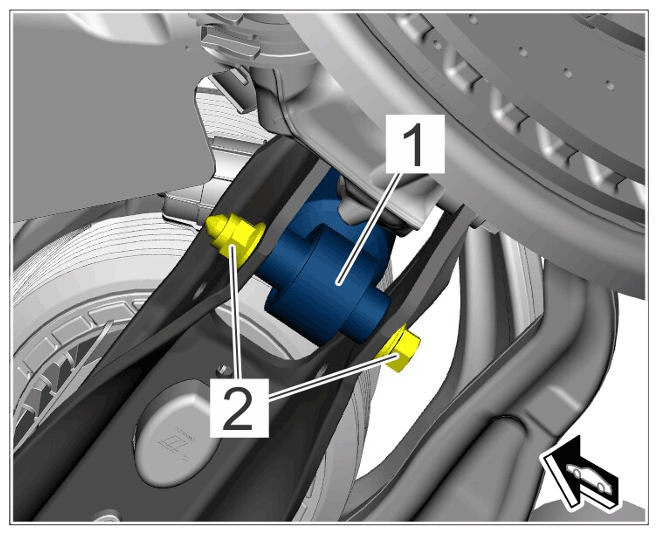

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shock absorber/spring damper to trailing arm
Shock/spring damper to trailing arm	Item 2: Hexagon-head bolt, M12x1.5x100 and hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180 (133 ftlb) °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Shock absorber/spring damper to trailing arm
