Removing Air Spring Bellows

WARNING: This page is about a different variant/trim than selected.

NOTE: Air springs can become kinked/fall out

Risk of damage to air springs
→ Deactivate the levelling system before raising the vehicle.

→ Check the bellows before lowering the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

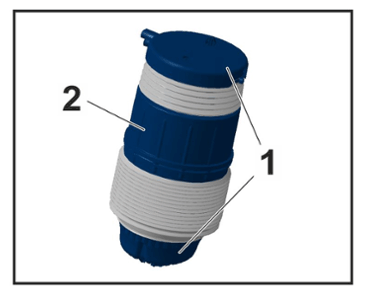

Air spring

Information

To prevent damage to the air springs, pay particular attention to the following points when handling air springs:

Never lower a vehicle with empty air springs.
Do not pull the air spring apart.
Do not bend the air spring out of shape (the air spring can be bent by < 20°).
Do not lift the air spring at the electric connector.
Carefully hold the air spring only at the top and bottom of the cover -1- or at the protective bellows --2- .

Information

The procedure for removing and installing is described for one side as an example.

The procedure for the other side is practically identical.

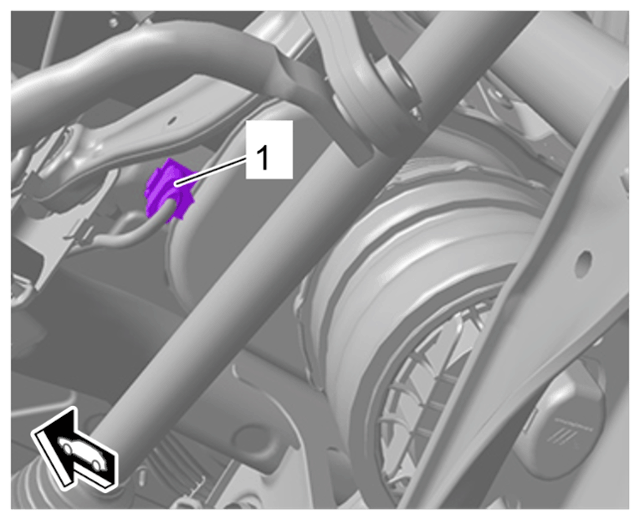

Release and disconnect electric plug connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on air spring bellows

Information

The cutting ring -1- and Voss threaded joint -2- must remain on the air line -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line
Disconnect air line -1- from air spring bellows.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for air line

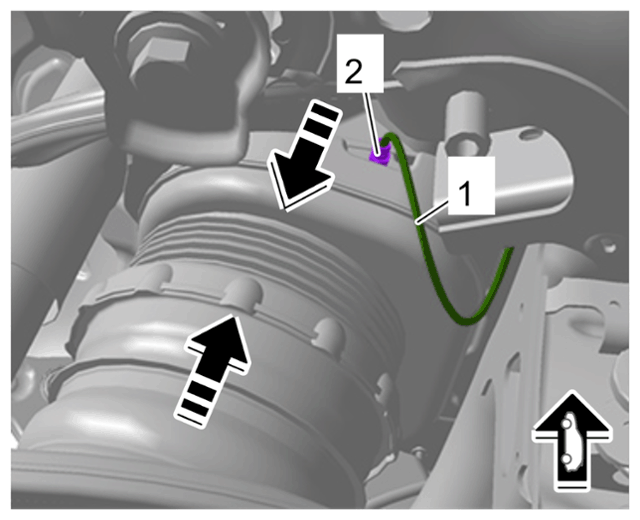

1. 2.1 Compress the relevant air spring bellows -Arrows- until the threaded joint -2- on the air line -1- is accessible.
2. 2.2 Unscrew threaded joint -2- .
Remove trailing arm together with air spring bellows.
> 421119 REMOVING AND INSTALLING TRAILING ARM

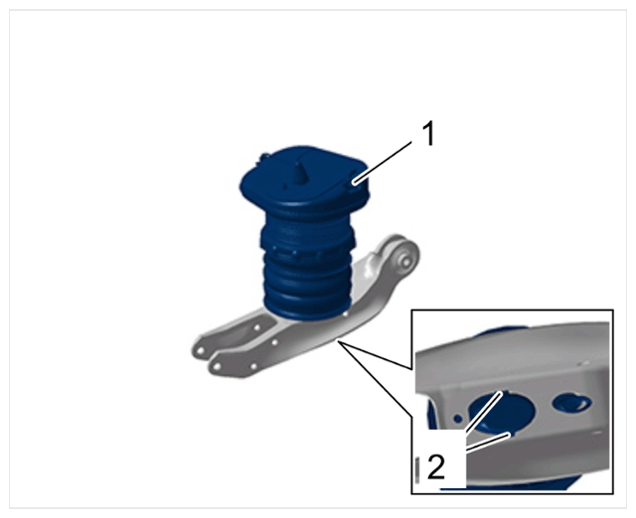

Only if the air spring bellows -1- is replaced:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air bellows
1. 4.1 Press fastening lugs -2- together and remove air spring bellows -1- from trailing arm.
