Removing Anti-Roll Bar

WARNING: This page is about a different variant/trim than selected.
CAUTION: Electrically moved components
  • Danger of limbs being trapped

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

WARNING: Wheel bearing housing raised incorrectly
  • Risk of crushing
  • Risk of damage to components

    → Wear personal protective gear.

    → Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

  1. Loosen connecting link for anti-roll bar To do this, counter at the nut -5-  and unscrew screw -4-  .

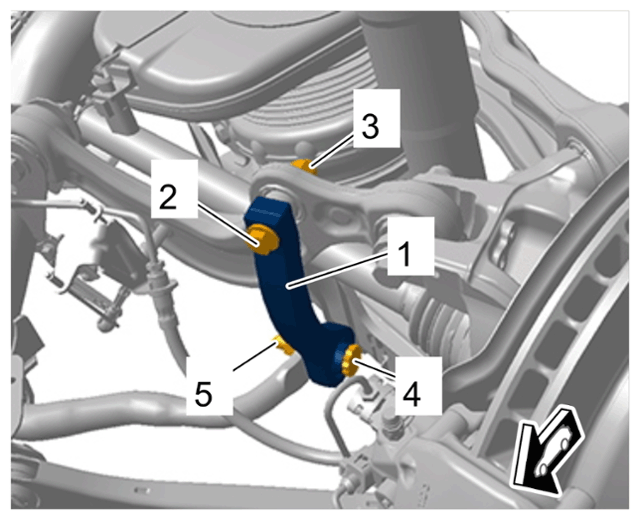

    G15279632Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear connecting link

  2. Disconnect wire harness for PDCC at the roll stabilisation (PDCC) (observe specified sequence).

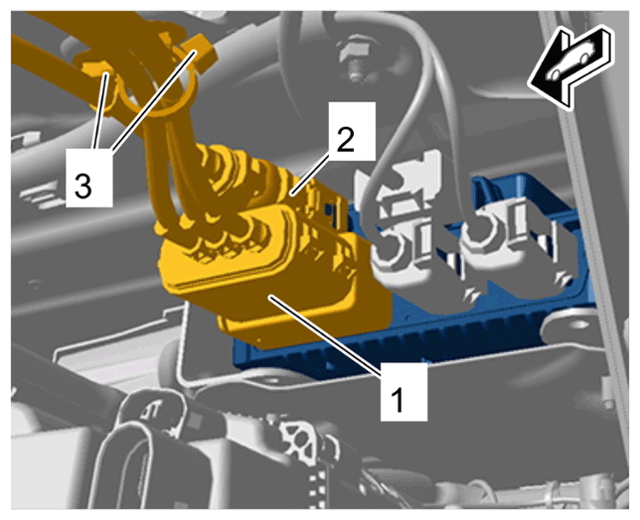

    G15279633Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for PDCC anti-roll bar

    1. 2.1  Release and disconnect electric plug connections in the sequence -1 to 2-  .
    2. 2.2  Unclip clips -3-  .
  3. Disconnect electric wire harness for anti-roll bar -1-  on body side.
    1. 3.1  Unscrew nut on ground line -2-  in the rear left wheel housing and unclip clips on wiring harness -3-  .

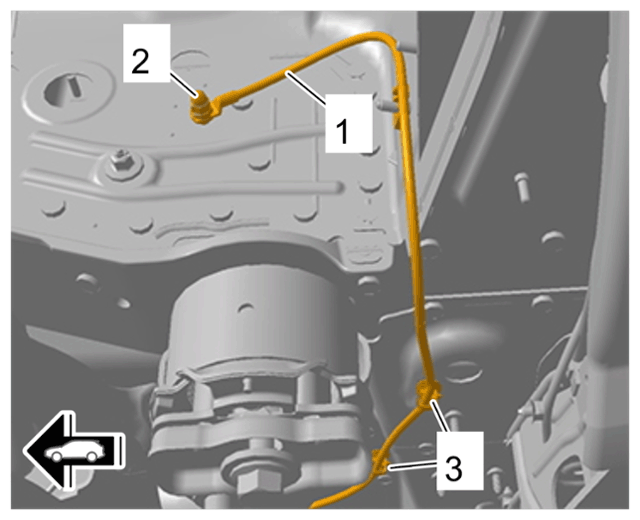

      G15279634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Ground point for PDCC anti-roll bar

  4. Disconnect electric wire harness for anti-roll bar -1-  on the axle side.

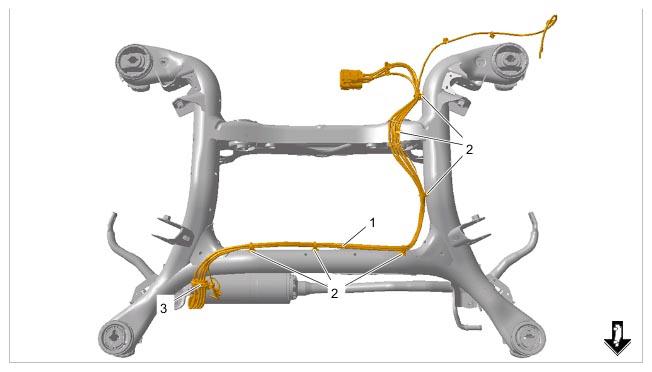

    G15279635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips on electric wiring harness for PDCC anti-roll bar

    1. 4.1  Unclip clips on electric wire harness for anti-roll bar -2-  .
    2. 4.2  Pull grommet for electric wire harness for anti-roll bar -3-  out of the holder.
    3. 4.3  Guide out electric wire harness -1-  and set it aside in such a way that the anti-roll bar can be removed.
  5. Remove rear anti-roll bar -2-  .

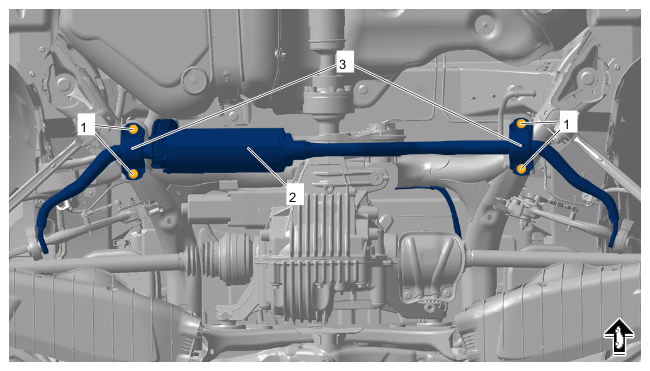

    G15279636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar on rear axle (PDCC)

    1. 5.1  Unscrew screws on anti-roll bar clamps -1-  and remove anti-roll bar -2-  .
    2. 5.2  Guide anti-roll bar -2-  with anti-roll bar clamps -3-  down out of the vehicle.
