Subsequent Work

WARNING: This page is about a different variant/trim than selected.

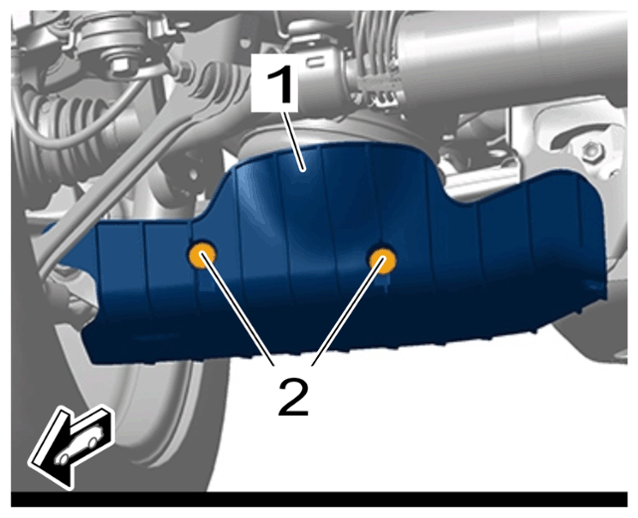

Fit rear axle trim panel -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear axle trim panel
1. 1.1 Replace clips -2- .
Install rear brake disc.
> 465319 REMOVING AND INSTALLING REAR BRAKE DISC

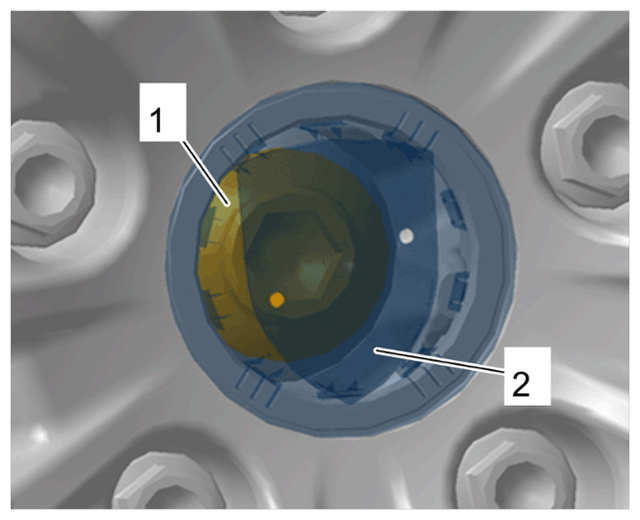

Fit screw on drive shaft -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft screw
1. 3.1 Replace screw for drive shaft -1- .
2. 3.2 Screw in and tighten new screw on drive shaft -1- .
  > Initial tightening 200 Nm (147.5 ftlb.) (147.5 ftlb.)

  > Final tightening + 180 (133 ftlb) °
3. 3.3 Fit hub cap -2- .
