Replacing Rear Wheel Bearing: Notes

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wheel bearing unit mounting (shown removed as an example)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

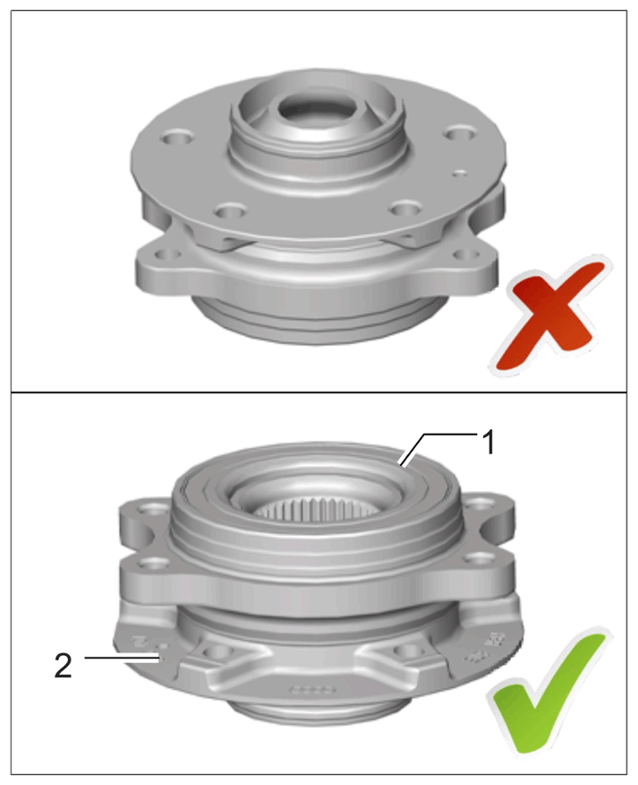

Wheel bearing unit

• The wheel bearing has a magnetised multipole seal, which acts as a pulse sender for the wheel speed sensor.
• The multipole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not damage the multipole seal and do not let it come into contact with magnetic objects (e.g. magnetised screwdriver or magnet).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

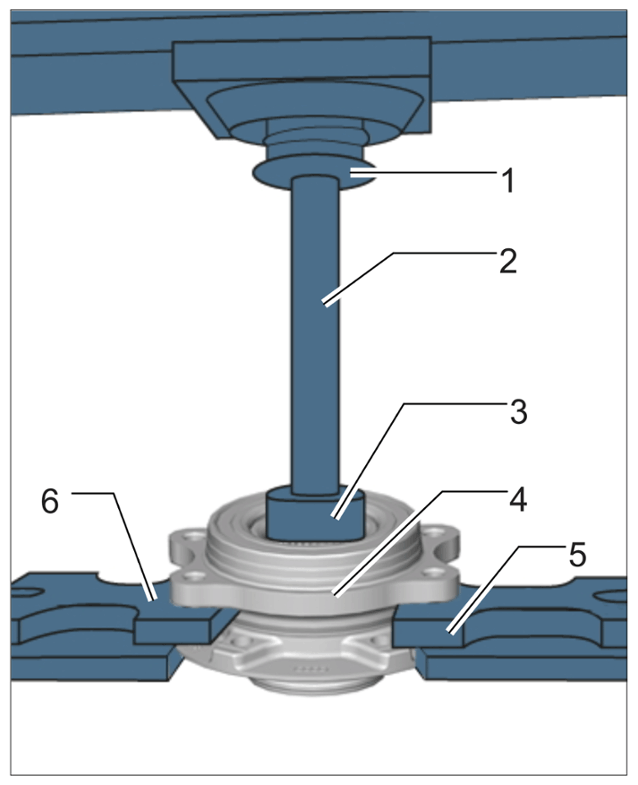

Wheel hub out of wheel bearing

1. 3.1  Fit special tools as shown in > Wheel hub out of wheel bearing.
2. 3.2  Press wheel hub out of the wheel bearing.

1. 4.1  > VAS 251 413 - Separating device  must be inserted between the inner bearing ring and wheel hub. Then pre-tension with the spindle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

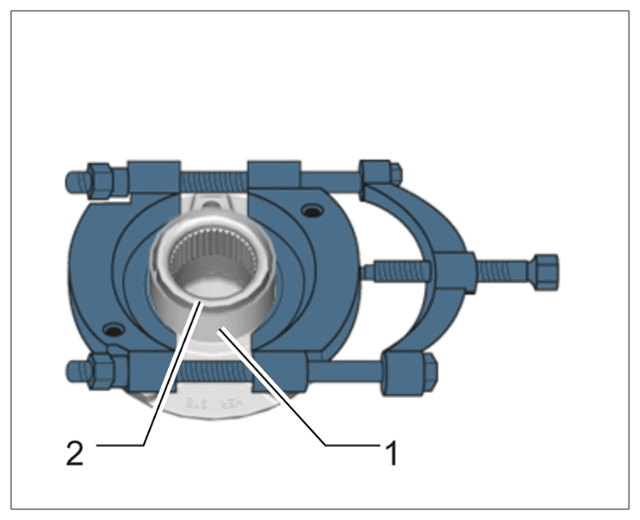

   Separating device

2. 4.2  Fit special tools as shown in > Inner bearing ring from wheel hub.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

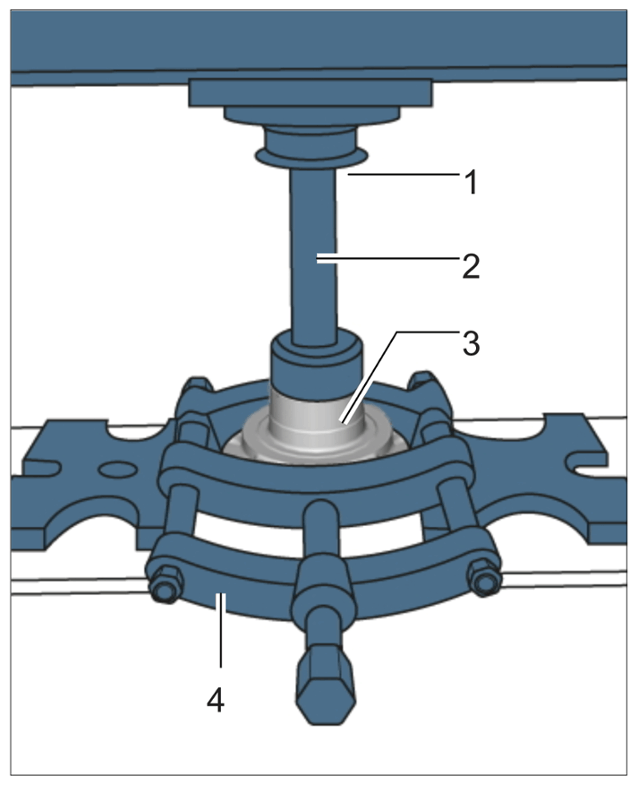

   Inner bearing ring from wheel hub

   1	Plunger
   2	Sleeve T10230/3 from > T10230 - assembly tool
   3	Pressure piece T10230/8 from > T10230 - assembly tool
   4	> VAS 251 413 - Separating device

3. 4.3  Press inner bearing ring off the wheel hub.
