Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Cable holder to wheel bearing housing	Hexagon-head bolt, M6 x 25	Tightening torque	10 Nm (7.5 ftlb.) (7.4 ftlb.)
drive shaft to wheel hub	Item 2: Collar screw, M16 x 1.5 x 72/ Always replace bolts following removal	Initial tightening	200 Nm (147.5 ftlb.) (147.5 ftlb.)

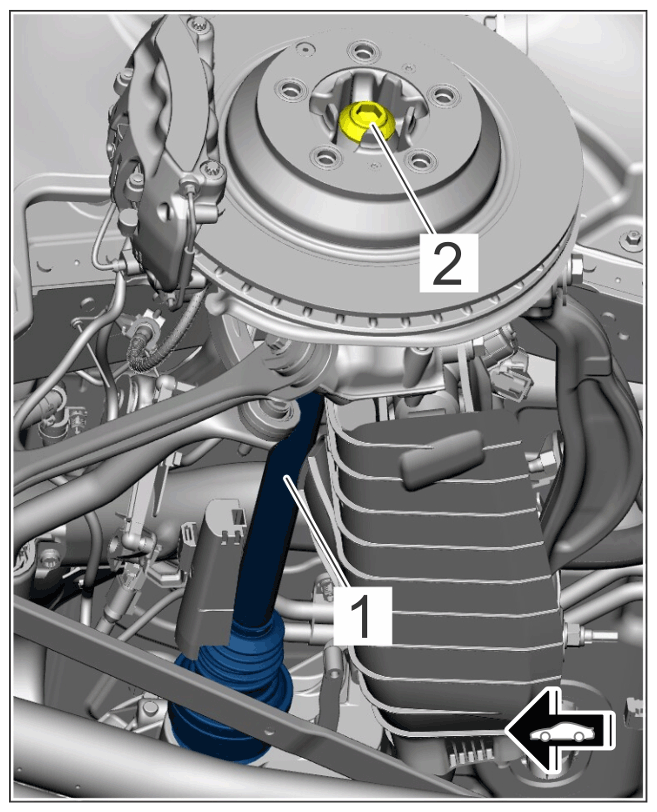

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive shaft to wheel hub
Drive shaft to wheel hub	Item 2: Collar screw M16 x 1.5 x 72/Always replace bolts following removal.	Final tightening	+ 180 (133 ftlb) °
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Drive shaft to wheel hub
Speed sensor rear to wheel bearing housing	Item 2: Cheese head bolt M6 x 16	Tightening torque	9 Nm (6.6 ftlb.)

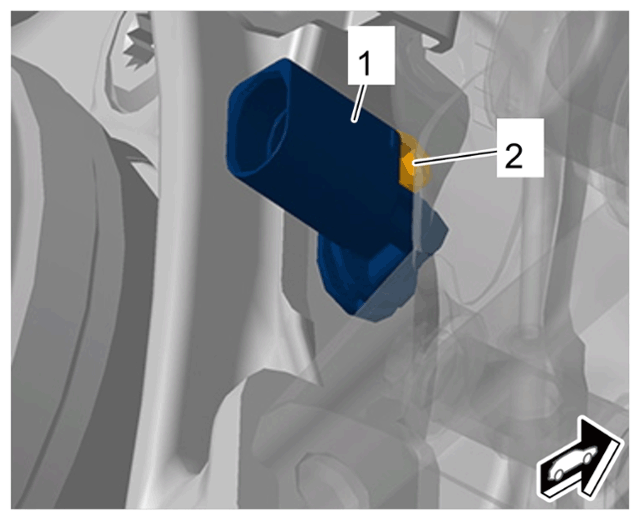

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear speed sensor
Sensor for body to rear wheel bearing housing	Hexagon-head bolt, M6 x 25	Tightening torque	10 Nm (7.5 ftlb.)
Steering tie rod to wheel bearing housing	Item 5: Hexagon-head bolt M14 x 1.5 x 100/Always replace screws following removal!	Initial tightening torque	- 100 Nm (73.8 ftlb.)
Front axle carrier on rear body	Item 5: Hexagon head bolt M14 x 1.5 x 100/Always replace bolts following removal!	Final tightening torque	+ 180 (133 ftlb.) °
Rear upper control arm on wheel bearing housing	Item 7: Hexagon-head bolt M14 x 1.5 x 100/Always replace screws following removal!	Initial tightening torque	100 Nm (73.8 ftlb.)
Front axle carrier on rear body	Item 7: Hexagon head bolt M14 x 1.5 x 100/Always replace bolts following removal!	Final tightening torque	+ 180 (133 ftlb) °
Upper control arm front to wheel bearing housing	Item 9: Hexagon-head bolt M12 x 1.5 x 85/Always replace screws following removal!	Initial tightening torque	70 Nm (51.6 ftlb.)
Front axle carrier on front body	Item 9: Hexagon head bolt M12 x 1.5 x 85/Always replace bolts following removal!	Final tightening torque	+ 180 (133 ftlb.) °
trailing arm to wheel bearing housing	Item 4: Hexagonal screw M14 x 1, 5 x 100 and hexagon nut/Always replace screws and nuts following removal!	Initial tightening	130 Nm (96 ftlb.) (95.9 ftlb.)
Diagonal arm to front-axle carrier	Item 4: Hexagon-head bolt, M14 x 1.5 x 100 and Hexagon nut/Always replace bolts and nuts following removal!	Final tightening	+ 180 (133 ftlb.) °
longitudinal arm to wheel bearing housing	Item 7: 12-sided bolt, M12 x 1.5 x 85/Always replace bolts following removal!	Inital tightening of	70 Nm (52 ftlb.) (51.6 ftlb.)
longitudinal arm to wheel bearing housing	Item 7: 12-sided bolt, M12 x 1.5 x 85/Always replace bolts following removal!	Final tightening	+ 180 (133 ftlb.) °
