Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Loosen screw on drive shaft

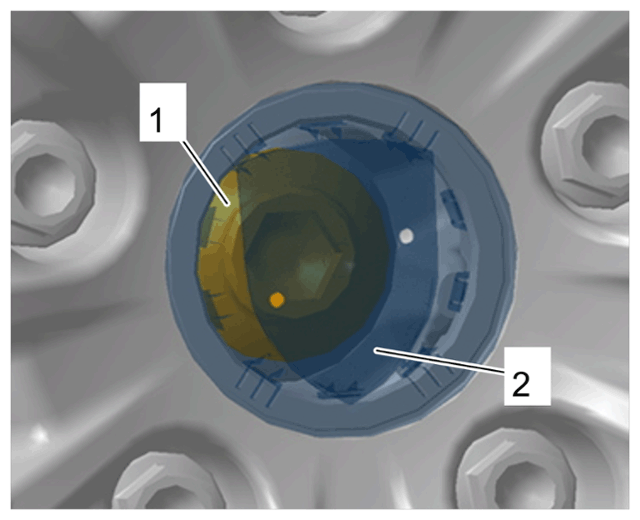

    G15279544Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1  Pull off hub cap -2-  .
    2. 1.2  Loosen screw on drive shaft -1-  .
  2. Remove brake shoes.

    > Removing and installing brake shoes

  3. Remove spreader device.

    > Removing and installing spreader device

  4. Detach tie rod -1-  from wheel bearing housing.

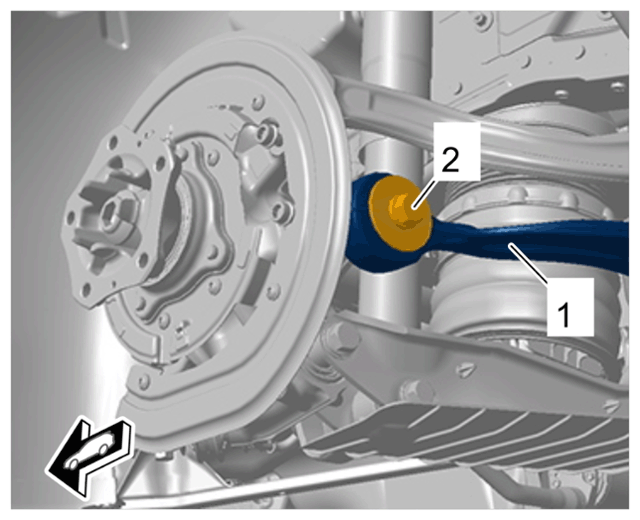

    G15279545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tie rod

    1. 4.1  Unscrew screw -2-  .
