Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install brake cover panel -1-  .

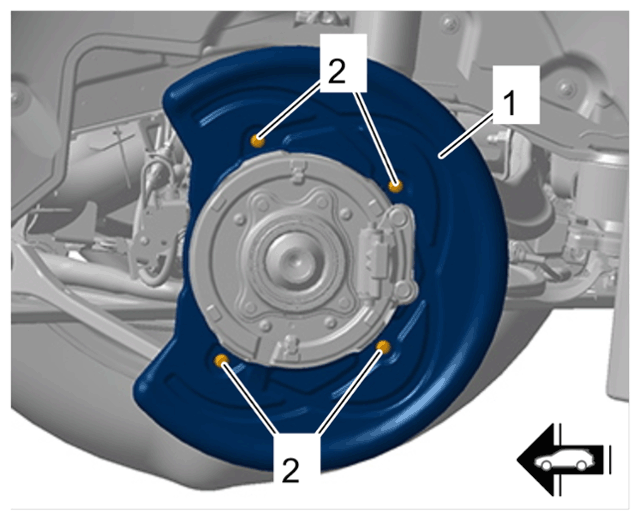

    G15279538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake cover panel

    1. 1.1  Fit brake cover panel -1-  .
    2. 1.2  Screw in and tighten screws on brake cover panel -2-  .

      > Tightening torque 10 Nm (7.4 ftlb.)

  2. Install brake shoes.

    > Removing and installing brake shoes

  3. Install the anti-roll bar.

    Vehicles without PDCC:

    > Removing and installing anti-roll bar

    Vehicles with PDCC:

    > Removing and installing anti-roll bar [PDCC]
