Removing Control Arm

WARNING: This page is about a different variant/trim than selected.
  1. Remove control arm -1-  .

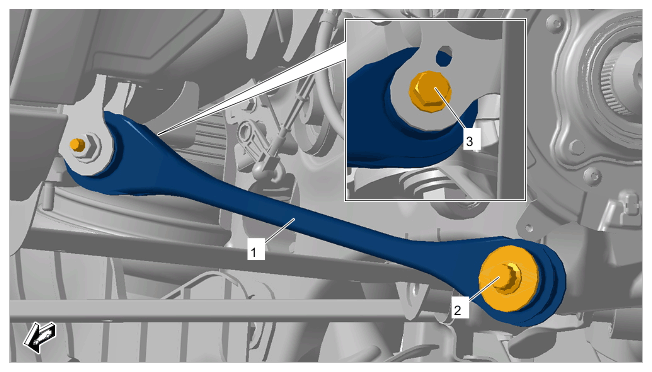

    G15279536Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-axle control arm

    1. 1.1  Unscrew screw securing control arm to wheel bearing housing -2-  .
    2. 1.2  Unscrew screw securing control arm to rear axle housing -3-  .
    3. 1.3  Remove control arm -1-  .
