Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove anti-roll bar.

    Vehicles without PDCC:

    > Removing and installing anti-roll bar

    Vehicles with PDCC:

    > Removing and installing anti-roll bar (PDCC)

  2. Remove brake shoes.

    > Removing and installing brake shoes

  3. Remove brake cover panel -1-  .

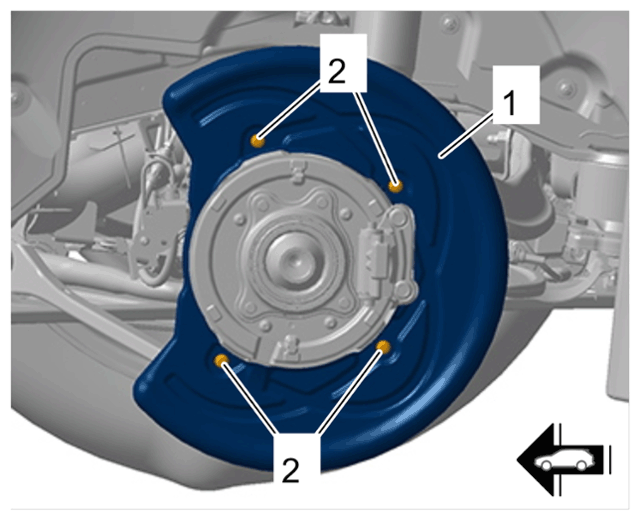

    G15279535Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake cover panel

    1. 3.1  Unscrew screws on brake cover panel -2-  .
    2. 3.2  Remove brake cover panel -1-  .
