Removing Upper Control Arm At The Rear

WARNING: This page is about a different variant/trim than selected.
  1. Only when removing upper control arm at the rear (right):

    Remove stone guard for valve unit -1-  .

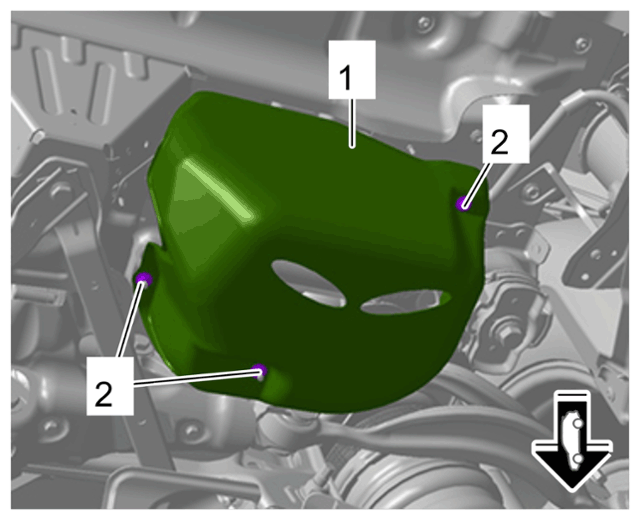

    G15279528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stone guard for valve unit

    1. 1.1  Unscrew nuts -2-  and remove stone guard for valve unit -1-  .
  2. Lower the rear axle slightly so that the screw securing the control arm to the rear axle housing is accessible.

    > 420119 REMOVING AND INSTALLING REAR AXLE

  3. Loosen control arm

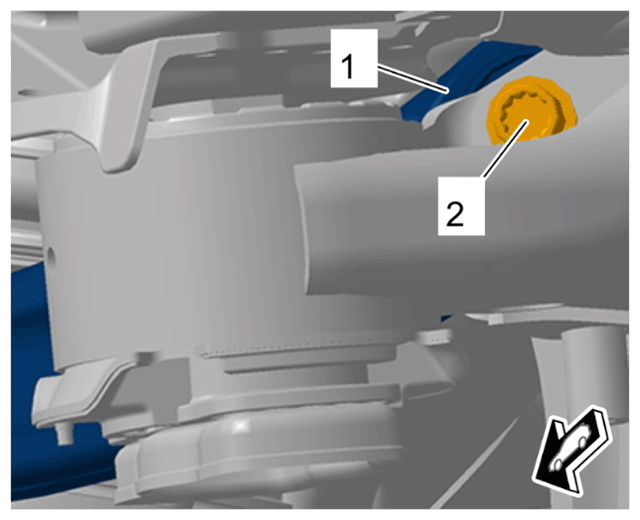

    G15279529Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper control arm at the rear to rear axle housing

    1. 3.1  Unscrew screw securing control arm to rear axle housing -2-  .
  4. Remove control arm

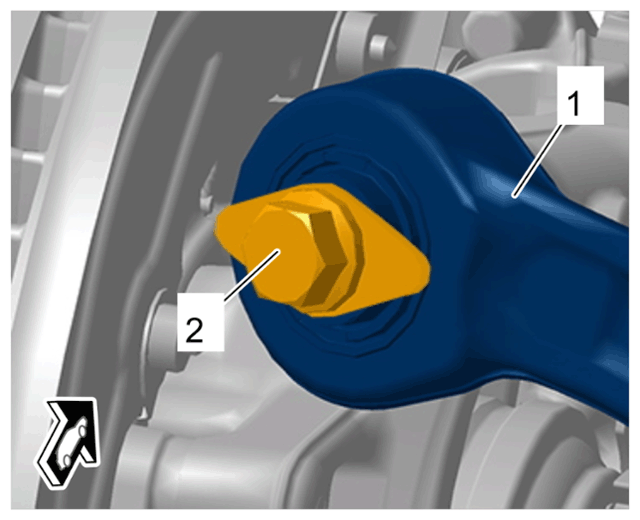

    G15279530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper control arm, rear

    1. 4.1  Unscrew screw securing control arm to wheel bearing housing -2-  .
    2. 4.2  Remove control arm -1-  .
