Component Overview
WARNING: This page is about a different variant/trim than selected.

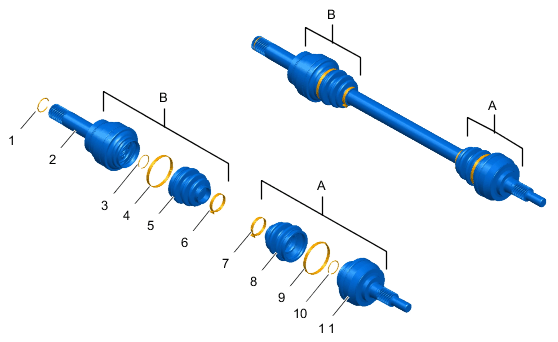

Drive shaft
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| A | Outer joint | |||
| B | Inner joint | |||
| Not shown! | Protective ring (transmission side only) | 1 | Left side only: Break (carefully) during removal in order to lever the drive shaft out of the transmission. | Replace protective ring. |
| 1 | Circlip | 1 | Remove circlip. | Do not confuse circlip no. 3 with circlip no. 1 on the inner joint. The two parts are nil identical. Carefully slide the circlip onto the shaft from above. Ensure that the circlip is seated correctly. |
| 2 | Joint | 1 | Remove the joint from the shaft using an aluminum mandrel and by hitting the ball hub (star-shaped inner ring) hard several times with a hammer. | Fit the joint on the shaft. To do this, press circlip no. 3 together as far as required so that the joint slides over it easily when you tap it with a rubber hammer. |
| 3 | Circlip | 1 | Remove circlip carefully with a pliers. | Do not confuse circlip no. 3 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the shaft from above. Ensure that the circlip is seated correctly. |
| 4 | Hose clamp, large | 1 | Remove hose clamp. | For securing the bellows. |
| 5 | Bellows | 1 | Remove bellows from the shaft. | |
| 6 | Hose clamp, small | 1 | Remove hose clamp. | For securing the bellows. |
| 7 | Hose clamp, small | 1 | Remove hose clamp. | For securing the bellows. |
| 8 | Bellows | 1 | Remove bellows from the shaft. | |
| 9 | Hose clamp, large | 1 | Remove hose clamp. | For securing the bellows. |
| 10 | Circlip | 1 | Remove circlip carefully with a pliers. | Do not confuse circlip no. 10 with circlip no. 1 on the inner joint. The two parts are not identical. Carefully slide the circlip onto the shaft from above. Ensure that the circlip is seated correctly. |
| 11 | Joint | 1 | Remove the joint from the shaft using an aluminum mandrel and by hitting the ball hub (star-shaped inner ring) hard several times with a hammer. | Fit the joint on the shaft. Press circlip no. 10 together as far as required so that the joint slides over it easily when you tap it with a rubber hammer. |
