Removing Drive Shaft
WARNING: This page is about a different variant/trim than selected.
- Remove drive shaft
Mask the drive shaft at the contact surface with fabric tape or place a protective plate (wood or plastic) between the mounting lever and drive shaft.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

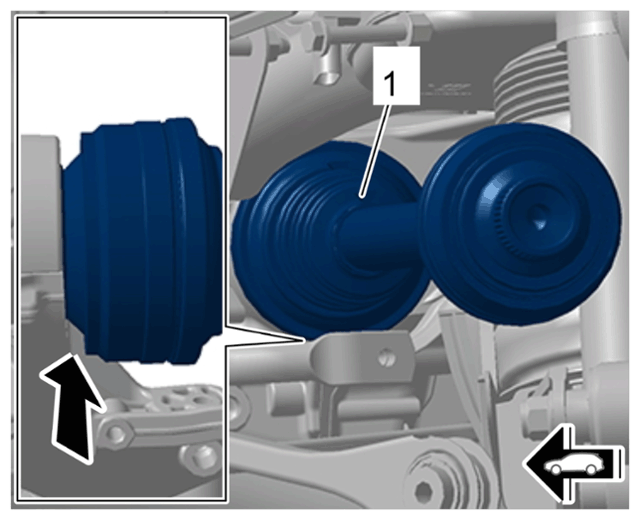

Removing drive shaft
- 1.1 Fit tyre iron at position -Arrow-
.
1.2 Lever out drive shaft -1- and guide it out of the final drive.
