Removing Strut

Information

The front fastening points of the strut are also the front fastening points of the rear axle.

1. Remove strut > Rear strut.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

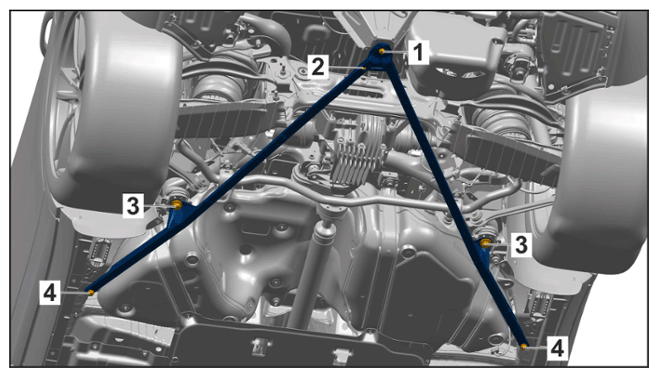

   Rear strut

   1. 1.1  Unscrew screw for rear strut -1-  .
   2. 1.2  Unscrew screw securing left section of strut to right section of strut -2-  .
   3. 1.3  Unscrew and remove screws -3-  .
   4. 1.4  Unscrew screws -4-  at the left and remove left section of strut.
   5. 1.5  Unscrew screws -4-  at the right and remove right section of strut.
