Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Air line to rear air spring | Union nut, M8 (4-mm air connection) | Tightening torque | 3 Nm (2 ftlb.) | ||
| Axle link on rear axle beam (camber eccentric) | Item 3: Eccentric screw, M14 x 1.5 with eccentric washer and hexagon nut | Tightening torque | 140 Nm (103 ftlb.) (103.3 ftlb.) | ||
| trailing arm to wheel bearing housing | Item 4: Hexagonal screw M14 x 1, 5 x 100 and hexagon nut/Always replace screws and nuts following removal! | Initial tightening | 130 Nm (96 ftlb.) (95.9 ftlb.) | ||
| Diagonal arm to front-axle carrier | Item 4: Hexagon-head bolt, M14 x 1.5 x 100 and hexagon nut/Always replace bolts and nuts following removal! | Final tightening | + 180 (133 ftlb.) ° | ||

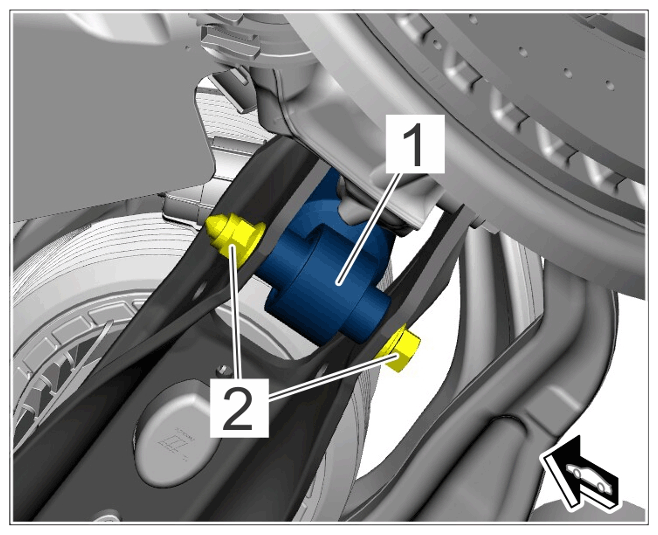

| shock springabsorber to trailing arm | Item 2: Hexagon-head bolt, M12 x 1.5 x 100 and hexagon nut/Always replace bolts and nuts following removal! | Initial tightening | 70 Nm (52 ftlb.) (51.6 ftlb.) | ||
|
Shock absorber/spring damper to trailing arm |
|||||
| Shock/spring damper to trailing arm | Item 2: Hexagon-head bolt, M12 x 1.5 x 100 and hexagon nut/Always replace bolts and nuts following removal! | Final tightening | + 180 (133 ftlb) ° | ||
|
Shock absorber/spring damper to trailing arm |
|||||
