Removing Tie Rod

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example.

The procedure for the other side is practically identical.

  1. Remove tie rod -1-  .

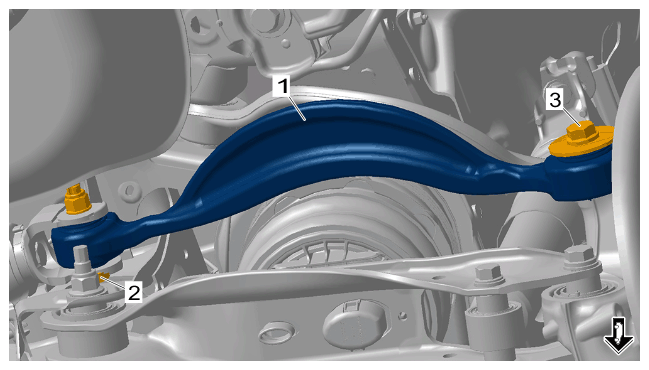

    G15279479Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tie rod

    1. 1.1  Mark the position of the eccentric screw -3-  .
    2. 1.2  Unscrew screws on tie rod -2 and 3-  .
    3. 1.3  Remove tie rod -1-  .
