Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove rear axle.

    > 420119 REMOVING AND INSTALLING REAR AXLE

Replacing rear-axle bearing (front)

WARNING: Mechanical, hydraulic or pneumatic press
  • Risk of squashing

    → Read specific safety information for the press.

    → Check that the press is working perfectly before use, particularly the safety components.

Information

The following tools are required for replacing the front hearing:

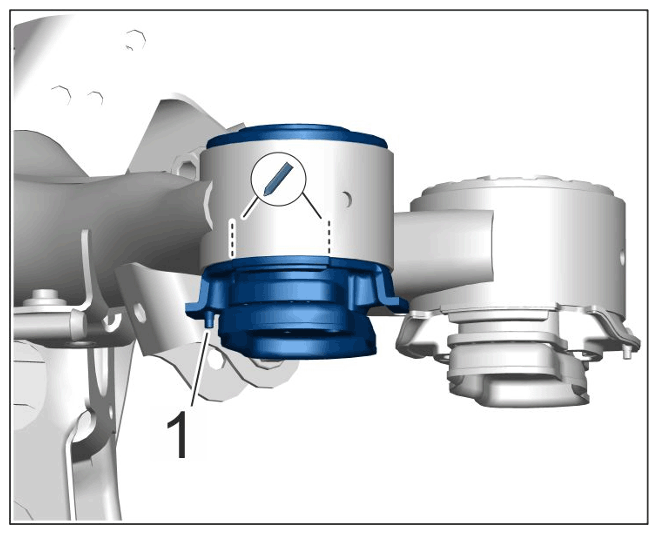

  1. Mark installation position of the rear-axle bearing (front) with respect to the rear axle housing. > Installation position of rear-axle bearing (front)
    G15279463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of rear-axle bearing (front)

  2. Lever off twist lock -1-  using a screwdriver. Repeat the process for the new bearing.
  3. Prise plastic insert -2-  off the rear-axle beaing (front). Repeat the process for the new bearing.
    G15279464Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Twist lock and plastic insert

  4. Press out rear-axle bearing (front).

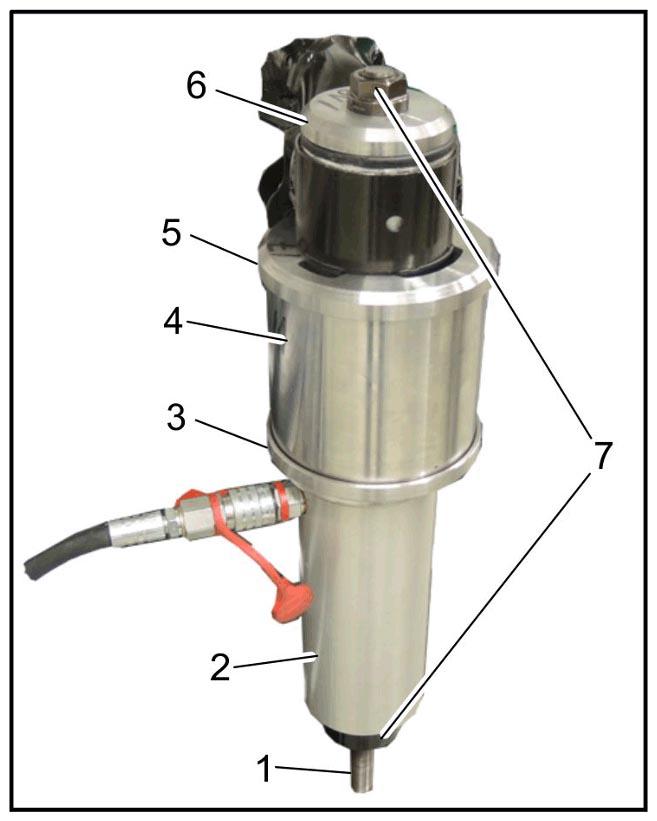

    G15279465Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Rear-axle bearing (front)
    1  Spindle from > T10205A - attachments
    2  > VAS 6178 - Hydraulic cylinder
    3  Support ring T40328/3
    4  Pipe T40328/1
    5  Support ring T40328/7  (The conical side must be facing upwards and the bars must engage in the cut-outs on the rear-axle bearing (front))
    6  Pressure piece T40328/10  (The cut-out is facing the rear-axle bearing (front))
    7  Nuts from > T10205A - attachments
  6. Align rear-axle bearing (front) with the previously applied markings. Lug -1-  must be facing right in direction of travel on both sides of the vehicle.
    G15279466Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of rear-axle bearing (front)

    Information

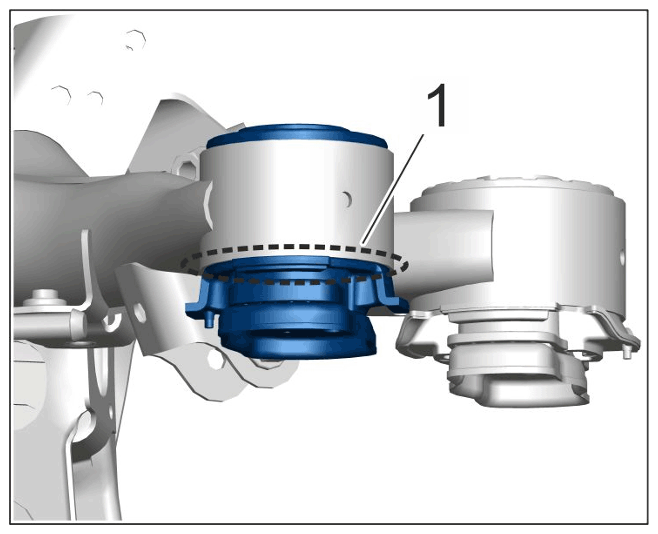

    Press the front bearing in as far as required until there is no gap between the rubber -1-  and the contact surface of the rear axle housing.

    Overpressing the bearing can damage the rubber. The bearing must be replaced in this case.

    G15279467Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Press-in instructions

  7. Press in rear-axle bearing (front).

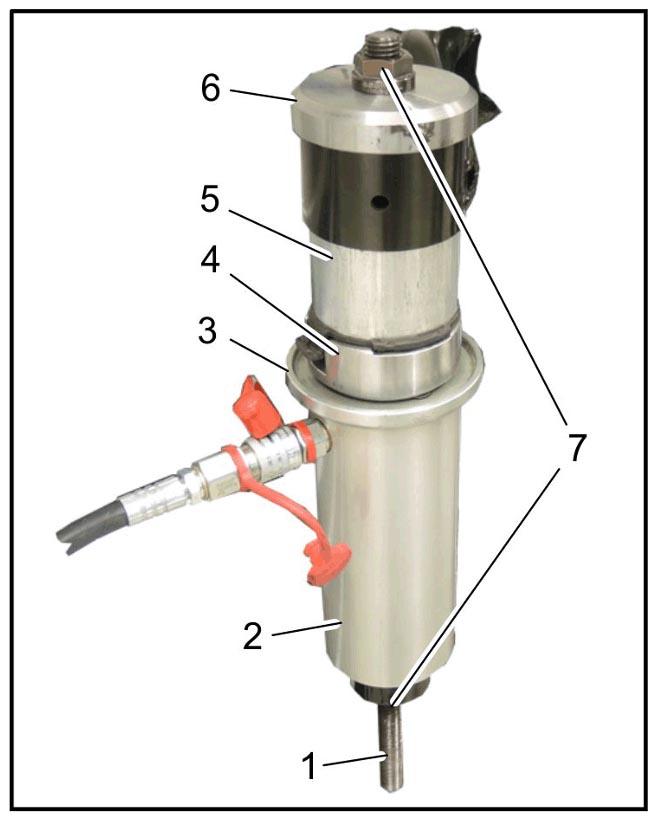

    G15279468Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear-axle bearing (front)

    1  Spindle from > T10205A - attachments
    2  > VAS 6178 - Hydraulic cylinder
    3  Support ring T40328/3
    4  Pressure piece T40328/8  (The bars must engage in the cut-outs on the rear-axle bearing (front))
    5  Rear-axle bearing (front)
    6  Pressure piece T40328/9
    7  Nuts from > T10205A - attachments
  8. Fit plastic insert -2-  on the rear-axle bearing (front).
  9. Fit twist lock -1-  on the new rear-axle bearing (front).

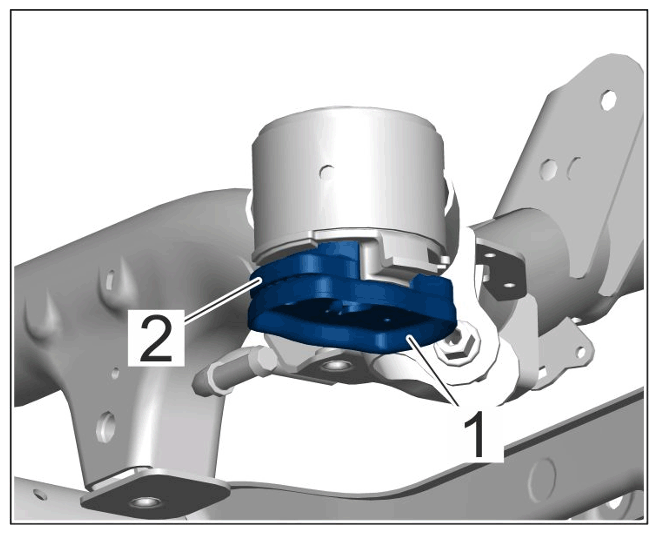

    G15279469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Twist lock and plastic insert
