Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Loosen screw on the rear drive shafts -1-  .

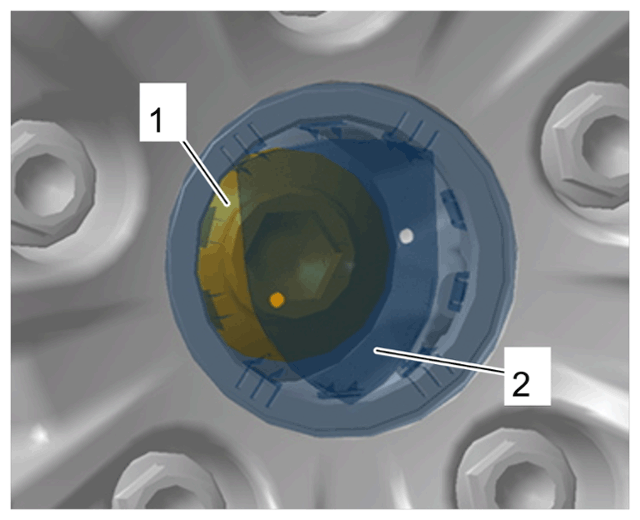

    G15279424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive shaft screw

    1. 1.1  Pull off hub cap -2-  .
    2. 1.2  Loosen screw on drive shaft -1-  .
  2. Only for vehicles with rear axle steering:

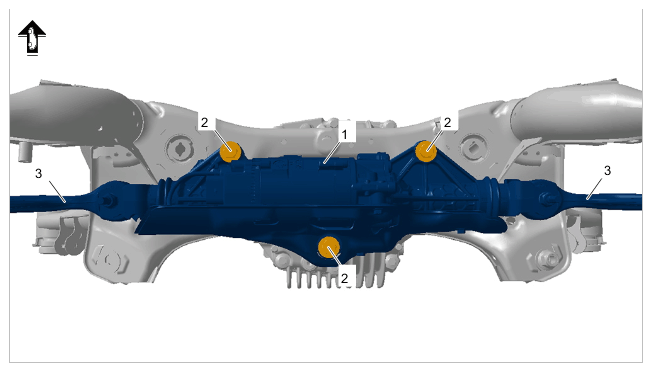

    G15279425Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Servo motor for rear axle steering

    1. 2.1  Loosen screws -2-  from servo motor for rear axle steering -1-  but do not unscrew fully.
  3. Loosen nut -2-  and screws -3 and 4-  from final drive -1-  but do not unscrew fully.

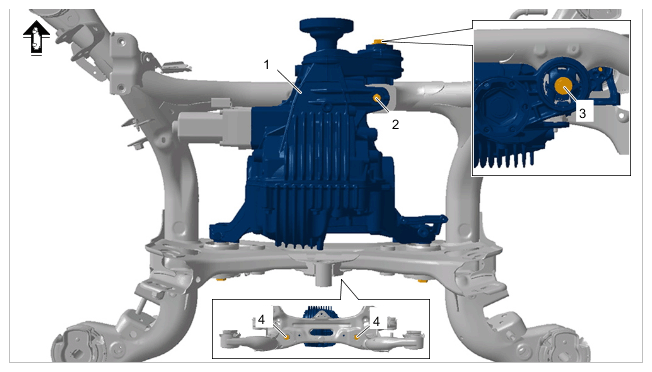

    G15279426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing final drive

  4. Remove rear axle.

    > Removing and installing rear axle
