Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Disconnect 48-volt vehicle electrical system.
> 2X00IN WORK INSTRUCTION FOR 48 V VEHICLE ELECTRICAL SYSTEM
Remove exhaust system.
> Removing and installing exhaust system
Remove cardan shaft.
> Removing and installing cardan shaft
Remove cover for center underbody.
> Removing and installing cover for center underbody
Remove brake calliper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

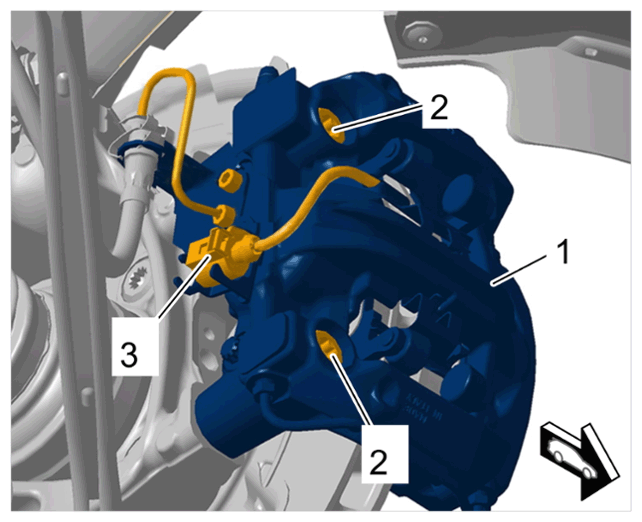

Rear brake calliper
1. 5.1 Release and disconnect electric plug connection for wear indicator -3- .
2. 5.2 Unscrew screws on brake calliper -2- .
3. 5.3 Remove brake calliper -1- .
  Information

  Do not suspend the brake calliper on the brake line or on the electric line for the brake pad wear indicator.
Hang the brake calliper -1- at a suitable position in the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

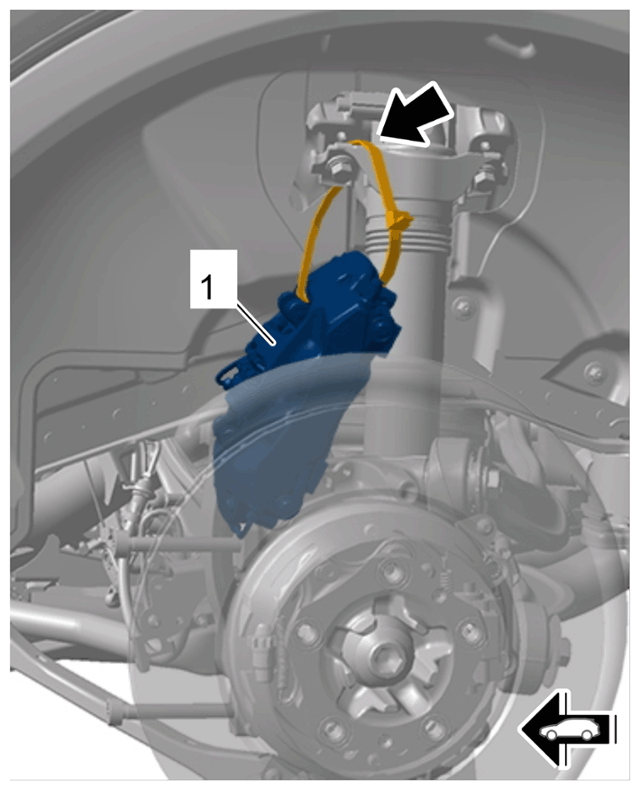

Brake calliper in wheel housing (shown as an example)
1. 6.1 Protect brake calliper -1- with a cloth to prevent paint damage.
Vehicles with air suspension system: Bleed the air springs.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

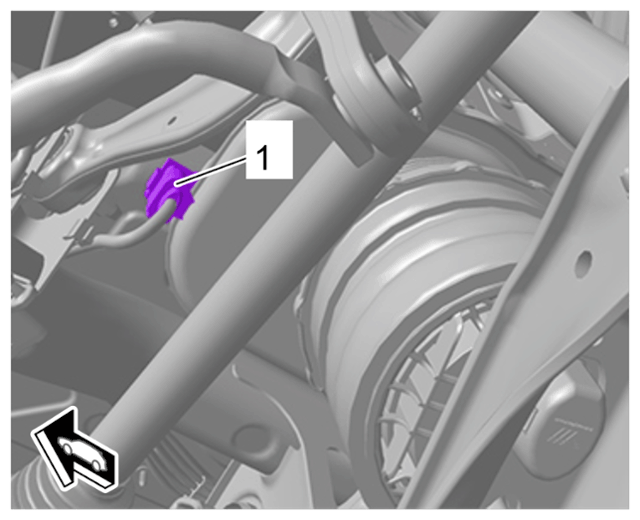

Electric plug connection on air spring bellows
1. 7.1 Release and disconnect electric plug connection -1- .
Disconnect air line -1- from air spring bellows.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

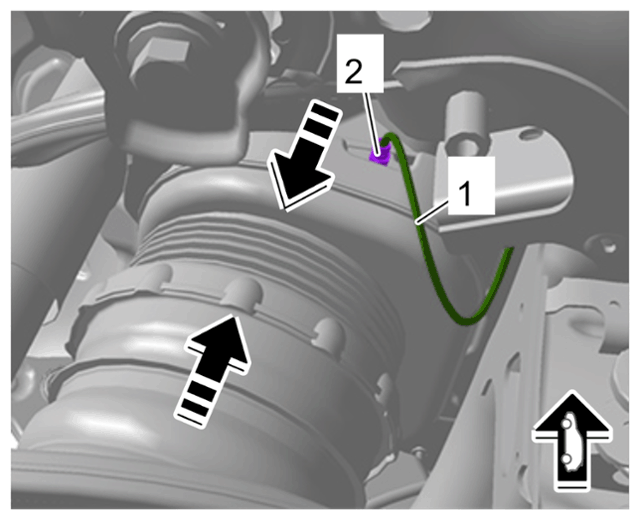

Threaded joint for air line
1. 8.1 Compress the relevant air spring bellows -Arrows- until the threaded joint -2- on the air line -1- is accessible.
2. 8.2 Unscrew threaded joint -2- .
3. 8.3 Let all the air escape from the air spring bellows. Compress the air spring with your hand if necessary.
Vehicles without air suspension system: Remove rear coil spring.
> 427219 REMOVING AND INSTALLING COIL SPRING
