Tightening Sequence For Coolant Pump And Coolant Regulator

WARNING: This page is about a different variant/trim than selected.

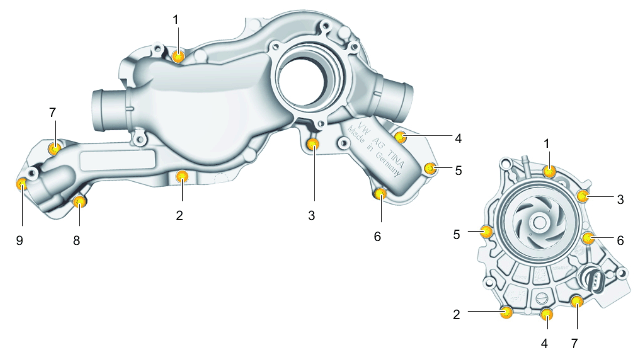

Fig 1: Coolant Pump & Coolant Regulator Screws Tightening Sequence - V8 Turbo
G15211953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for coolant pump & coolant regulator - V8 Turbo

1-9  Tightening sequence for coolant regulator housing
1-7  Tightening sequence for coolant pump
