Coolant Pump And Coolant Regulator
WARNING: This page is about a different variant/trim than selected.

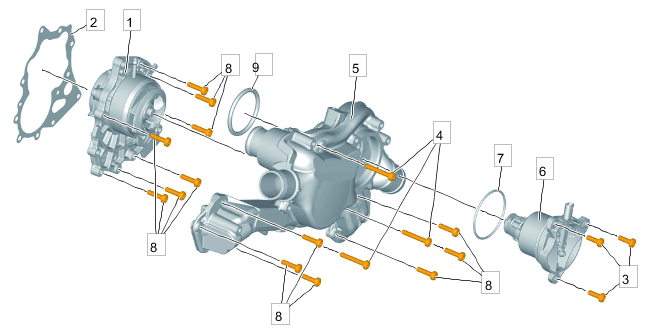

Coolant pump and coolant regulator - V8 Turbo
| 1 | Coolant pump |
| 2 | Seal/replace |
| 3 | Screws, M6 x 30 > Tightening torque 9 Nm (6.5 ftlb.) |
| 4 | Screws, M6 x 40 > Tightening torque 9 Nm (6.5 ftlb.) |
| 5 | Coolant regulator housing |
| 6 | Coolant regulator |
| 7 | O-ring/replace |
| 8 | Screws, M6 x 25 > Tightening torque 9 Nm (6.5 ftlb.) |
| 9 | O-ring/replace |
