Section 40 (1X Engine - General 4.0L -- 9YA - Cayenne (9YA))
>>
WM, 1X00IN Technical Values (V8 Twin-Turbo)
>>
Service Information 17 - Engine - Lubrication
>>
Tightening Sequence For Oil Pan
Tightening Sequence For Oil Pan
WARNING:
This page is about a different variant/trim than selected.

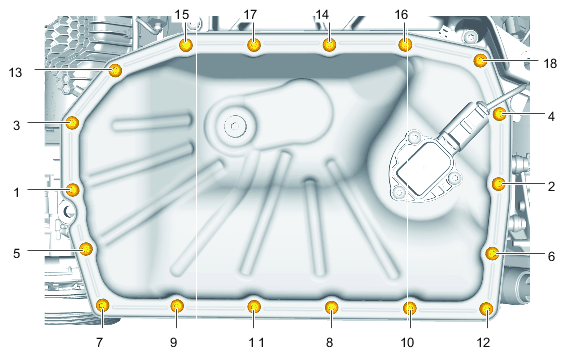

Fig 1: Oil Pan Screws Tightening Sequence - V8 Turbo
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tightening sequence for oil pan - V8 Turbo
1-18
Tightening sequence for oil pan - V8 Turbo
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
