Tightening Sequence For Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.

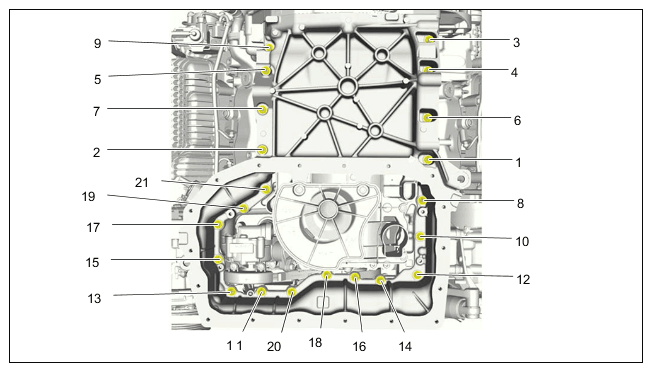

Fig 1: Oil Guide Housing Screws Tightening Sequence - V8 Turbo
G15211946Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for oil guide housing - V8 Turbo

1-21  Tightening sequence for oil guide housing - V8 Turbo
