Oil Pan And Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.

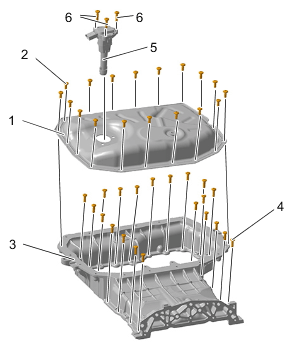

Fig 1: Oil Pan And Oil Guide Housing Components Location With Torque Specification - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pan and oil guide housing - V8 Turbo

1	Oil pan/replace if damaged
2	Screws, M6 x 16/observe tightening sequence! > Tightening torque 9 Nm (6.5 ftlb.)
3	Oil guide housing
4	Screws, M6 x 20/observe tightening sequence! > Tightening torque 9 Nm (6.5 ftlb.) > Tightening torque 9 Nm (6.5 ftlb.)
5	Oil level sensor
6	Screws, M6 x 25 > Tightening torque 9 Nm (6.5 ftlb.)
not shown	Screw plug on oil can/replace sealing ring > Tightening torque 30 Nm (22 ftlb.)
