Guide Tube For Oil Dipstick

WARNING: This page is about a different variant/trim than selected.

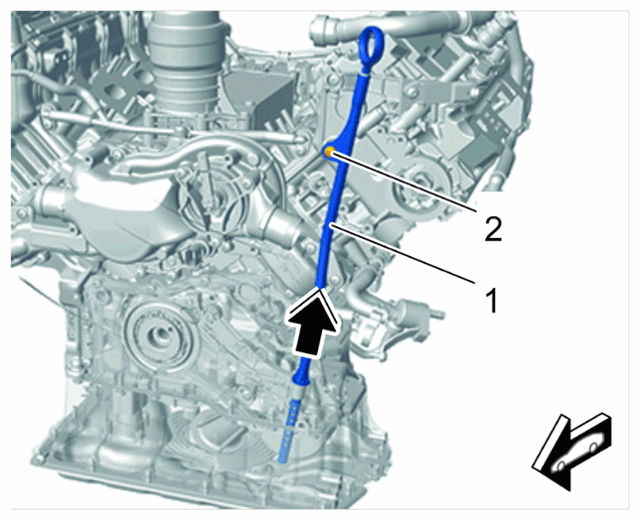

Fig 1: Guide Tube For Oil Dipstick Component Location With Torque Specification
G15211942Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide tube for oil dipstick

2  Screw on guide tube for oil dipstick/replace O-ring  > Tightening torque 9 Nm (6.5 ftlb.)
