Torque Support
WARNING: This page is about a different variant/trim than selected.

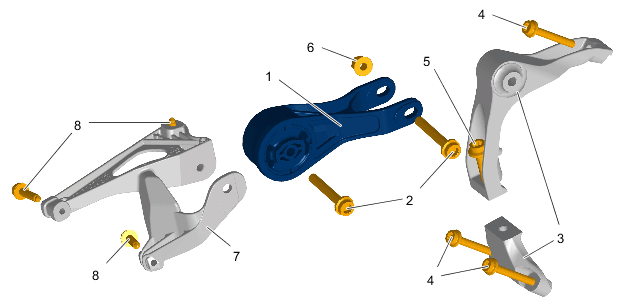

Torque support
| 1 | Torque support |
| 2 | Screw, M10 x 75 > Tightening torque 55 Nm (41 ftlb.) |
| 3 | Torque support bracket |
| 4 | Screw, M8/Adopted from G2 - check!! > Tightening torque 23 Nm (17 ftlb.) |
| 5 | Screw, M10 x 35 > Tightening torque 55 Nm (41 ftlb.) |
| 6 | M10 nut |
| 7 | Mounting bracket |
| 8 | Screw, M8 x 35 > Tightening torque 23 Nm (17 ftlb.) |
