Removing Pulse Sender
WARNING: This page is about a different variant/trim than selected.

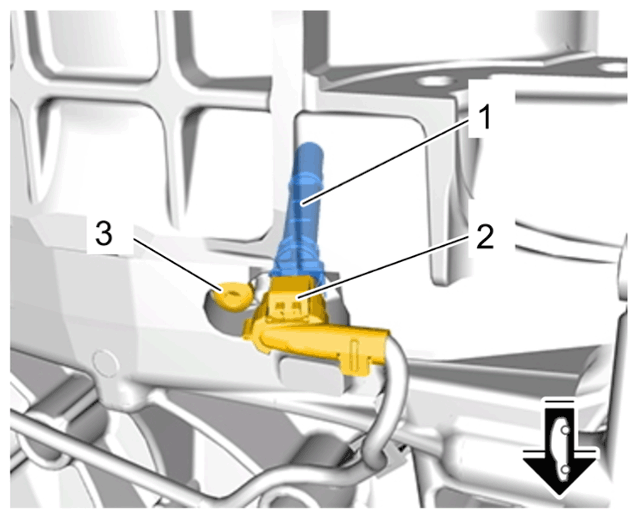

- Remove pulse sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulse sender
- 1.1 Release and disconnect electric plug connection -2-
.
- 1.2 Unscrew screw -3-
.
- 1.3 Pull off pulse sender -1-
.
