Installing Pulse Sender

1. Install pulse sender -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

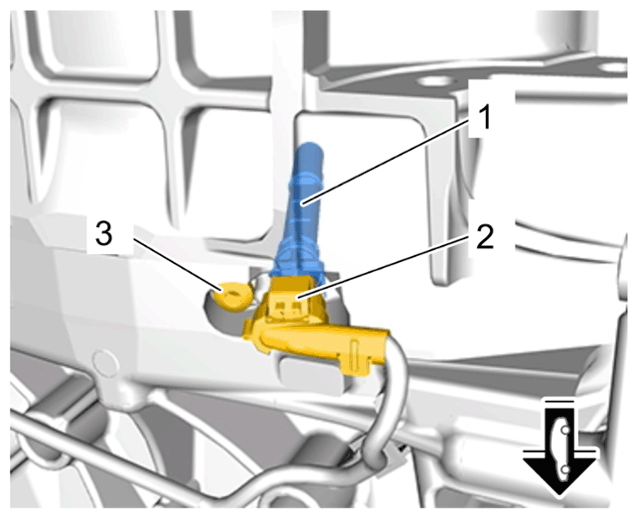

Pulse sender

1. 1.1 Insert pulse sender -1-  .
2. 1.2 Fit and tighten screw -3-  .

   V6 with aluminum screw: >Initial tightening 3 Nm (2 ftlb.) (2.2 ftlb.)  >Torque angle 90°

   V8 with steel screw: >Tightening torque 9 Nm (6.5 ftlb.) (6.6 ftlb.)

3. 1.3 Connect and lock electric plug connection -2-  .
