Removing Knock Sensor

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Remove knock sensor -1-  .

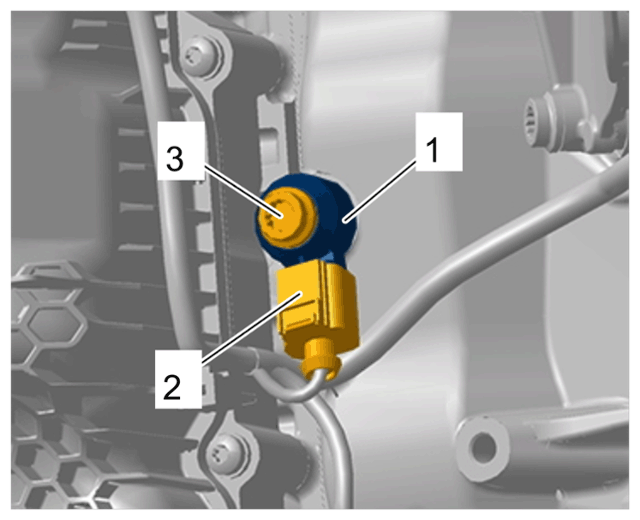

G15241634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knock sensor

  1. 1.1 Release and disconnect electric plug connection for knock sensor -2-  .
  2. 1.2 Unscrew screw on knock sensor -3-  .
  3. 1.3 Remove knock sensor -1-  .
