Installing Spark Plugs

NOTIFICATION

Broken spark plug electrodes

• Bits of electrodes can fall into the combustion chamber

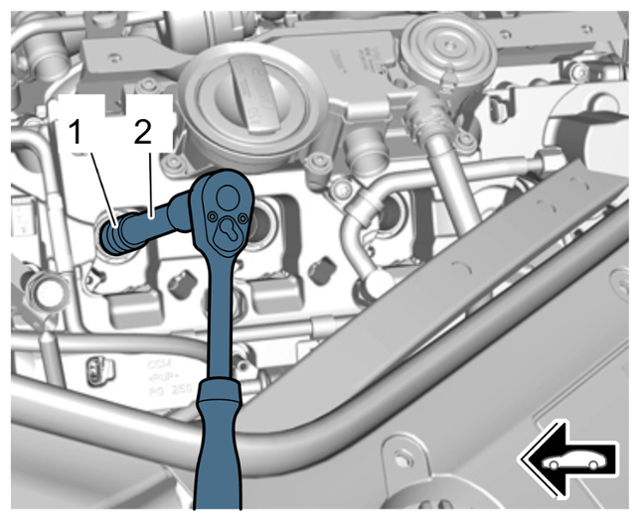

1. Screw in spark plugs using >VAS 6919 - double hexagon socket for spark plugs, a/f 14-1-  and tighten to the specified tightening torque.

Spark plugs: >Tightening torque 23 Nm (17 ftlb.) (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spark plug
