Removing Camshaft Sensor (Outlet Camshafts)
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
- Remove camshaft sensor -1- .

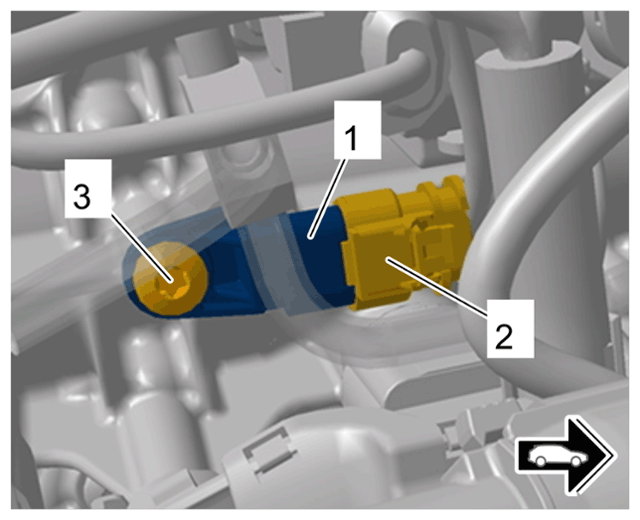

Camshaft sensor
- 1.1 Release and disconnect electric plug connection -2- .
- 1.2 Unscrew screw -3-
and remove.
- 1.2.1 At the camshaft sensor of the exhaust camshaft cylinder bank 2, the thermal insulation must also be lifted.
- 1.3 Remove camshaft sensor -1- .
