Removing Camshaft Sensor (Intake Camshafts)
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

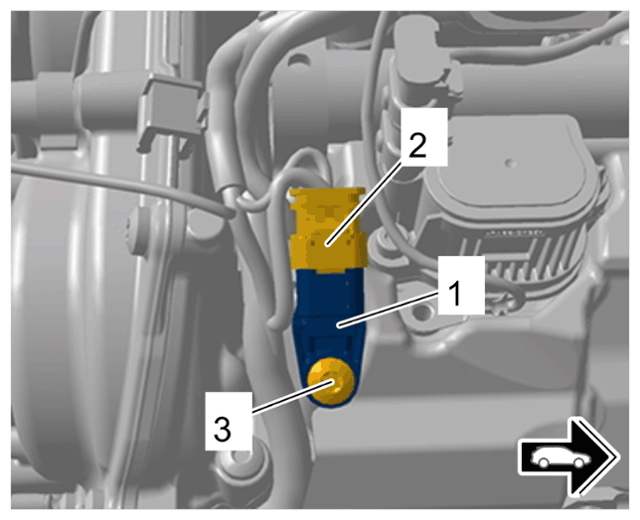

- Remove camshaft sensor -1- .
Camshaft sensor
- 1.1 Release and disconnect electric plug connection -2- .
- 1.2 Unscrew screw -3- and remove.
- 1.3 Remove camshaft sensor -1- .
