Removing Ignition Coils For Cylinders 4 To 6

1. Expose cable duct.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

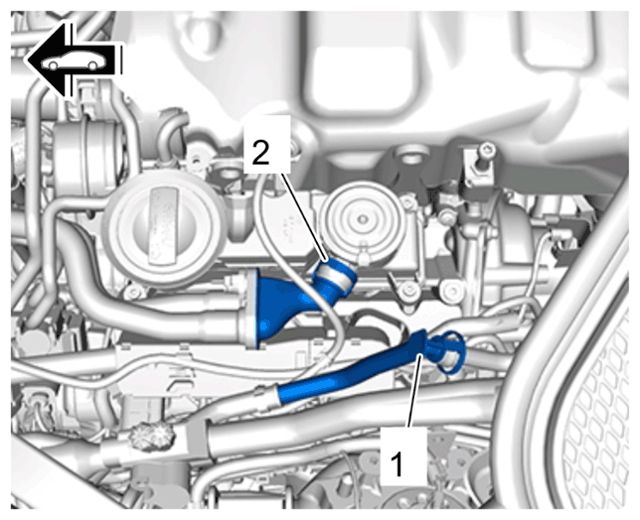

   Vent line and vacuum line on left cylinder bank

   1. 1.1 Release and disconnect vent line -2-  at the connection and move it aside.
   2. 1.2 Release and disconnect vacuum line -1-  at the connection point and move it aside.
2. Loosen cable duct -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

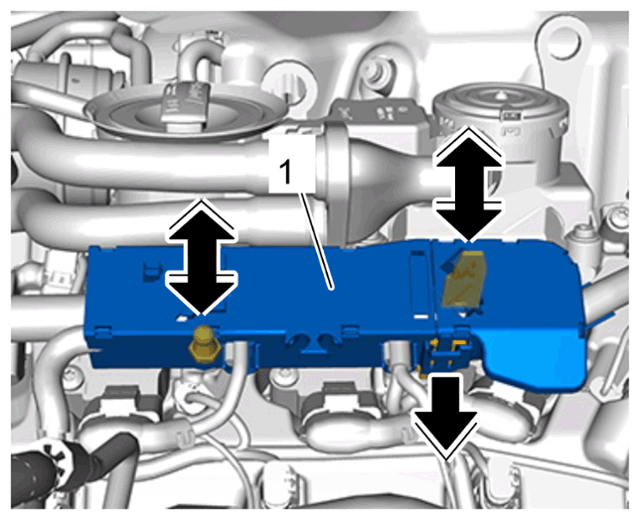

   Cable duct on left cylinder bank

   1. 2.1 Release retaining clip -bottom right arrow-  and pull cable duct up out of the guide -top right arrow-  .
   2. 2.2 Pull cable duct -1-  off ball pins -left arrow-  .
   3. 2.3 Move cable duct -1-  aside so that the ignition coils are accessible.
3. Remove ignition coil -2-  for the relevant cylinder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

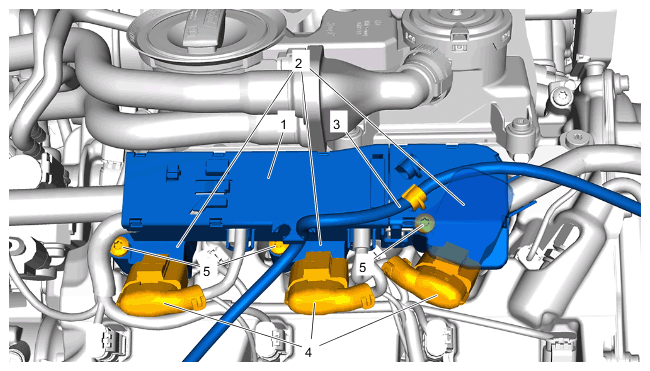

Overview of left cylinder bank

1. 3.1 Release and disconnect electric plug connection for ignition coil -4-  for the relevant cylinder.
2. 3.2 Unscrew screw on ignition coil -5-  for the relevant cylinder.
3. 3.3 Pull off ignition coil -2-  for the relevant cylinder.
