Removing Transmission Coolant Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Remove the coolant pipe switching valve -1-  .

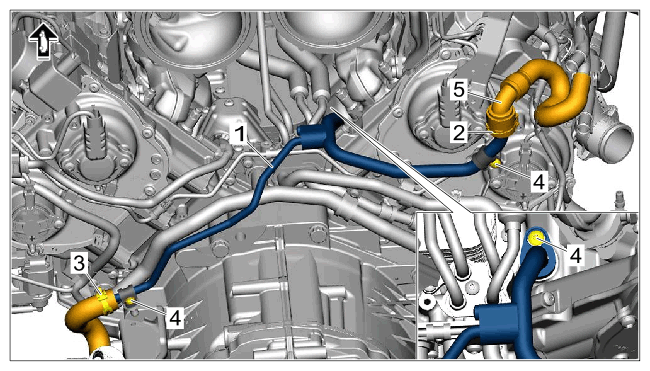

    G15211884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe switching valve

    1. 1.1  Release retaining clip -2-  .
    2. 1.2  Loosen spring band clamp -3-  using > VAS 6890 - spring band clamp pliers  .
    3. 1.3  Unscrew screws -4-  and pull coolant pipe switching valve -1-  off the coolant hose -5-  .
    4. 1.4  Catch escaping coolant and close off line connections using suitable stoppers.
  2. Remove transmission coolant pipes -1-  .

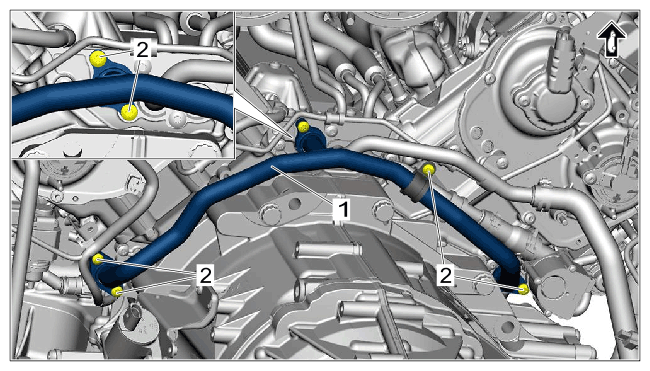

    G15211885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission coolant pipe

    1. 2.1  Unscrew screws -2-  and pull off coolant pipe on the transmission -1-  .
    2. 2.2  Catch escaping coolant and close off line connections using suitable stoppers.
