Installation Position
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

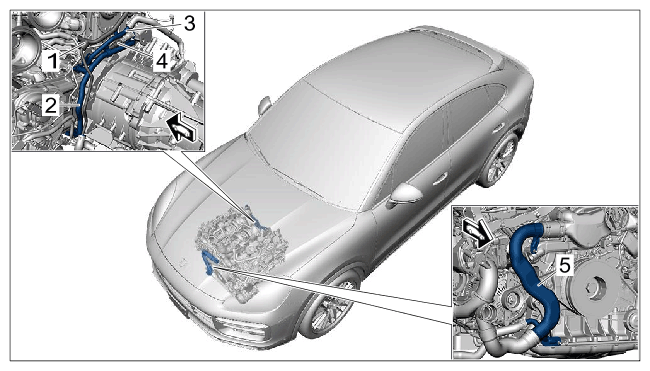

Installation position
| 1 |
Coolant pipe switching valve (engine control unit for transmission oil preheating) |
| 2 |
Transmission coolant pipe |
| 3 |
Coolant pipe Additional coolant pump Turbocharger |
| 4 |
Rear right coolant pipe |
| 5 |
Coolant pipe coolant pump |
