Removing Coolant Regulator

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • → Let the fluid cool down.
    • → Wear personal protective gear.
CAUTION: Pointed or sharp objects
  • Risk of cracks, pricks or cuts
    • → Wear personal protective gear.
  1. Remove coolant regulator -1-  .

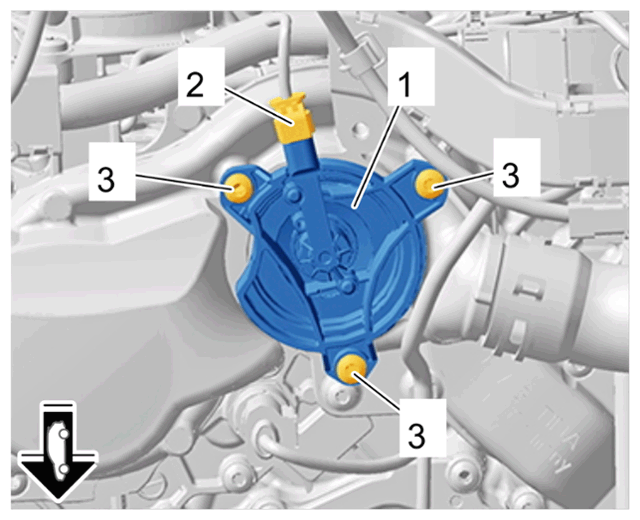

    G15211877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant regulator

    1. 1.1  Have suitable aids ready for collecting emerging coolant.
    2. 1.2  Release and disconnect electric plug connection -2-  .
    3. 1.3  Unscrew and remove screws -3-  .
    4. 1.4  Remove coolant regulator -1-  and collect any emerging coolant using suitable aids.
  2. Remove coolant regulator seals -1-  .

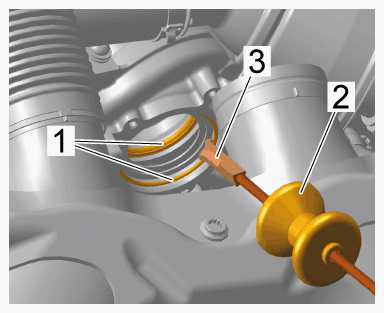

    G15211878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing coolant regulator seals (shown on the 971 Panamera V8 biturbo)

    1. 2.1  Remove old seals -1-  using > VW771 - multi-purpose tool (-2-  ) and > VW771/37 - extraction tool (-3-  ).
