Installing Coolant Regulator

Information

Install seals with open side facing the engine.

1. Install seals -1 and 3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

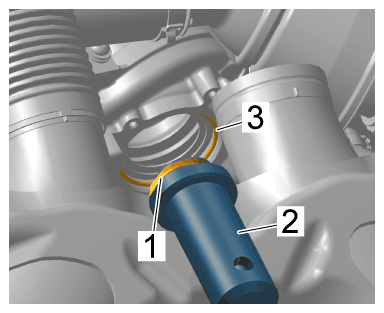

   Installing coolant regulator seals (shown on the 971 Panamera V8 biturbo)

   1. 1.1  Fit seal -1-  using > T40357 - pressure piece (-2-  ) and tap it in as far as it will go.
   2. 1.2  Insert seal -3-  .
2. Install coolant regulator -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

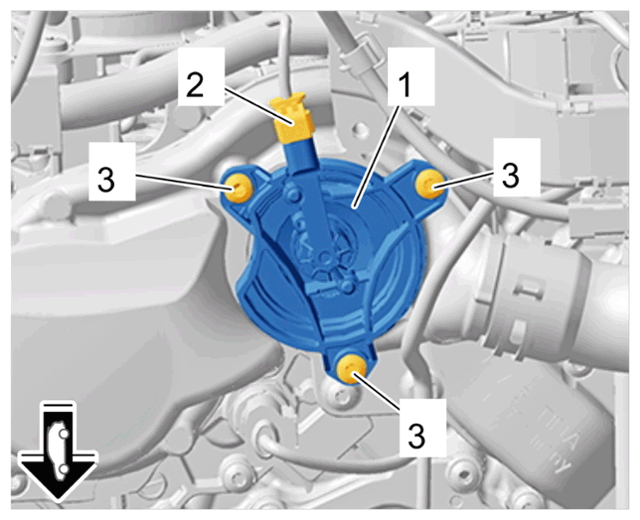

   Coolant regulator

   1. 2.1  Move coolant regulator into installation position, fit screws -3-  and tighten to > Tightening torque 9 Nm (6.5 ftlb.)
   2. 2.2  Connect and lock electric plug connection -2-  .
