Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screw on guide tube for oil dipstick | Replace O-ring. | Tightening torque | 9 Nm (6.5 ftlb.) | ||

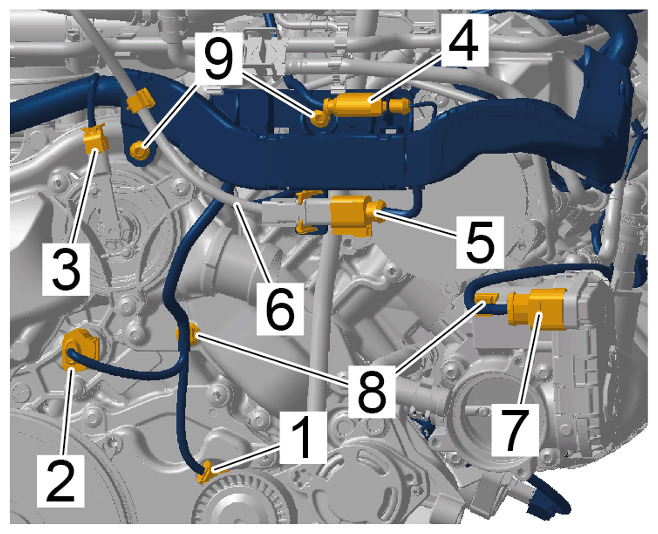

| Fastening screws securing front left cable duct to cylinder head | Item 9 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Fastening screws on front left cable duct |
|||||

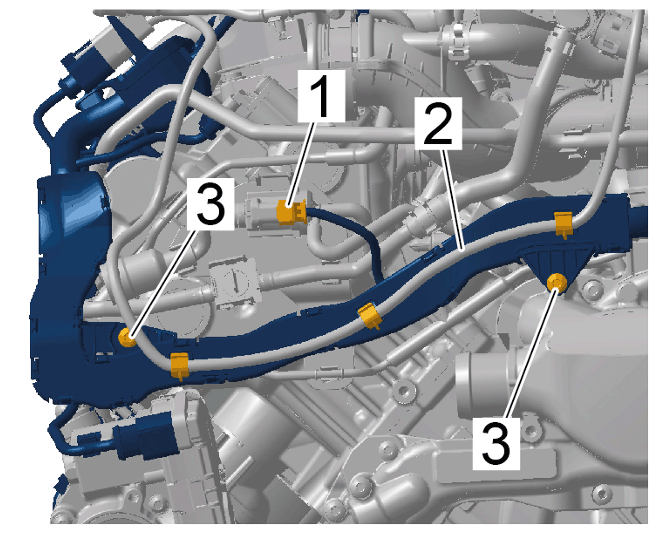

| Fastening screws securing front right cable duct to cylinder head | Item 3 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|
Fastening screws on front right cable duct |
|||||
| Screw securing coolant line to engine | M6 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| Screw for coolant pipe | M6 | Tightening torque | 8 Nm (6 ftlb.) | ||
| Coolant regulator housing | Screws, M6 x 40 (3 ea.) | Tightening torque | 9 Nm (6.5 ftlb.) | ||
| Mounting for coolant regulator housing and coolant pump | Screws, M6 x 25 (13 ea.) | Tightening torque | 9 Nm (6.5 ftlb.) |
