Remove Coolant Regulator Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

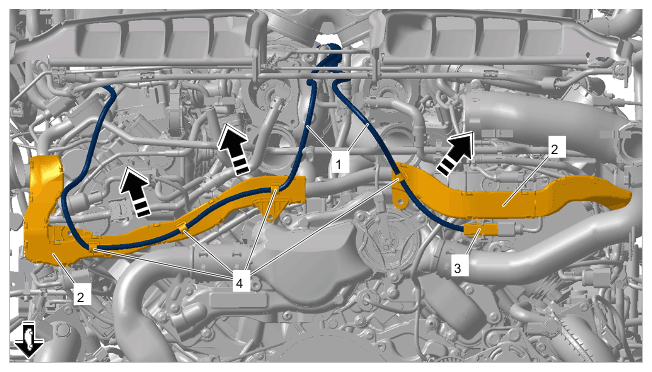

Electric wire harnesses

1. 2.1  Release and disconnect electric plug connection -3-  .
2. 2.2  Loosen electric wire harnesses -1-  from fastening parts -4-  .
3. 2.3  Move electric wire harnesses -1-  aside in direction of -Arrows-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

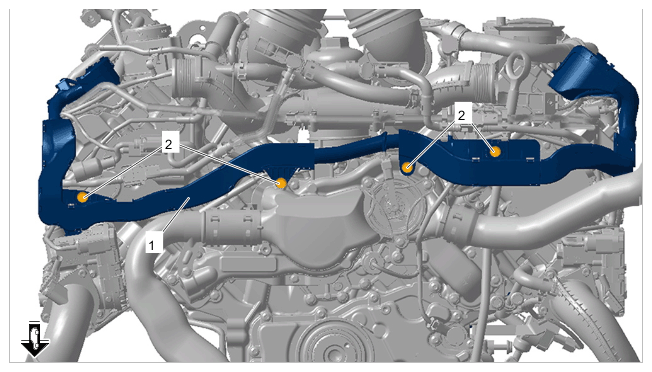

Cable duct

1. 3.1  Unscrew screws -2-  .
2. 3.2  Press cable duct -1-  up slightly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

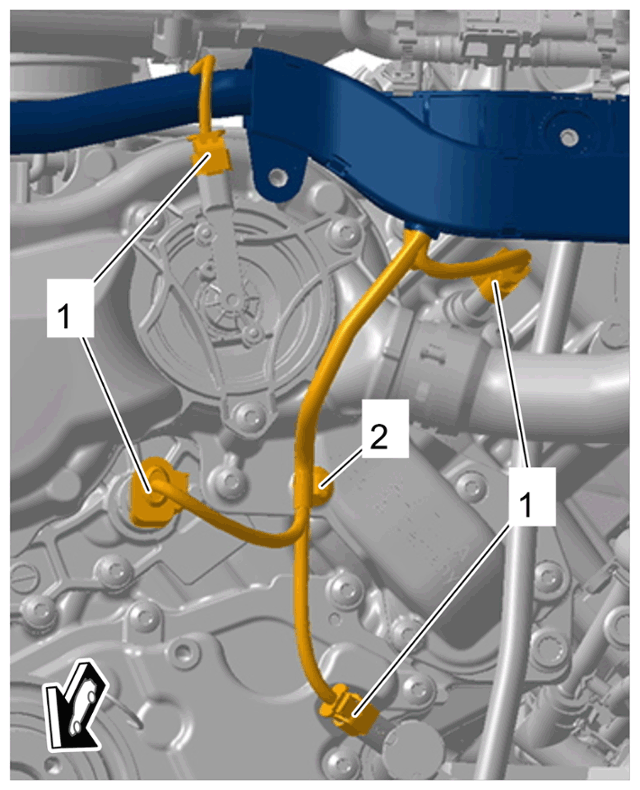

Electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

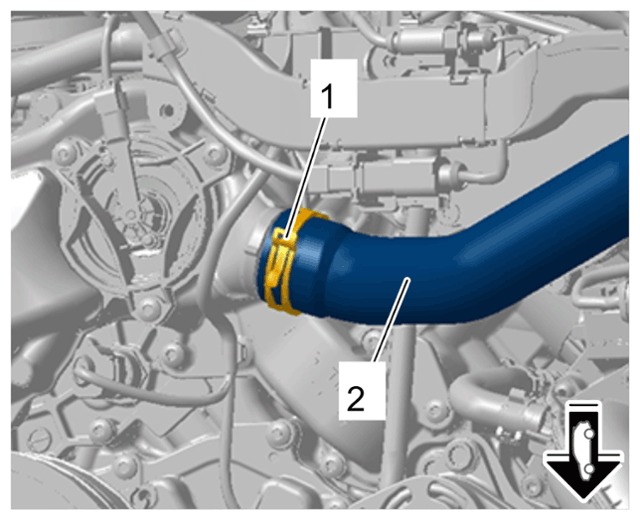

Left coolant hose

1. 5.1  Collect emerging coolant and close off connection openings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

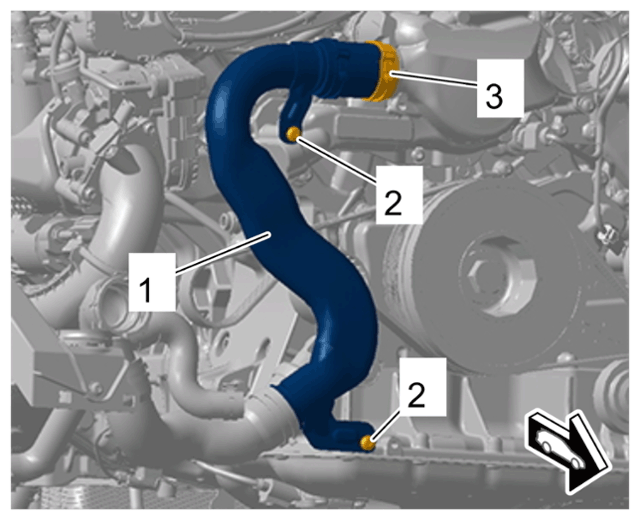

Coolant pipe for coolant pump

1. 6.1  Unscrew screws -2-  .
2. 6.2  Loosen spring band clamp -3-  using > VAS 6890 - spring band clamps pliers  .
3. 6.3  Disconnect coolant pipe for coolant pump -1-  and set it aside.
4. 6.4  Close off connection openings using stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

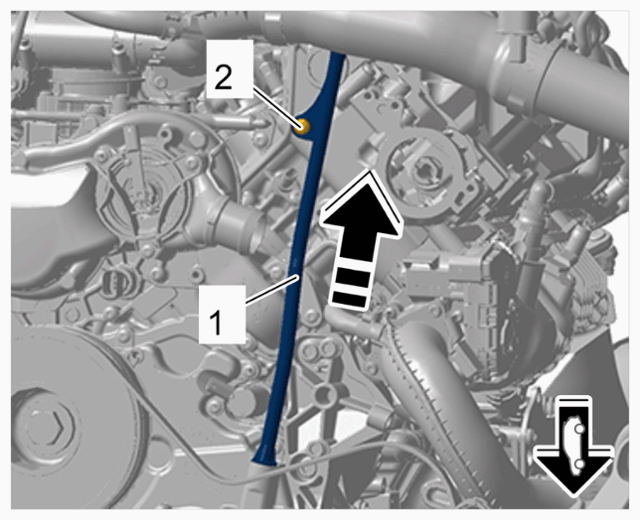

Guide tube for oil dipstick

1. 7.1  Unscrew screw -2-  .
2. 7.2  Pull out guide tube for oil dipstick -1-  in direction of -Arrow-  and guide it out of the engine compartment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

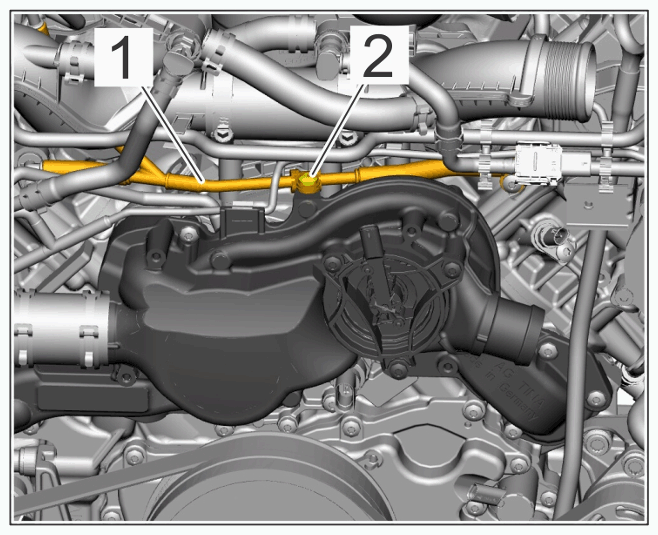

Line on coolant regulator housing

1. 8.1  Loosen screw -2-  with normal clamp.

Information

Close off the opening immediately using a suitable stopper to prevent dirt from getting in.

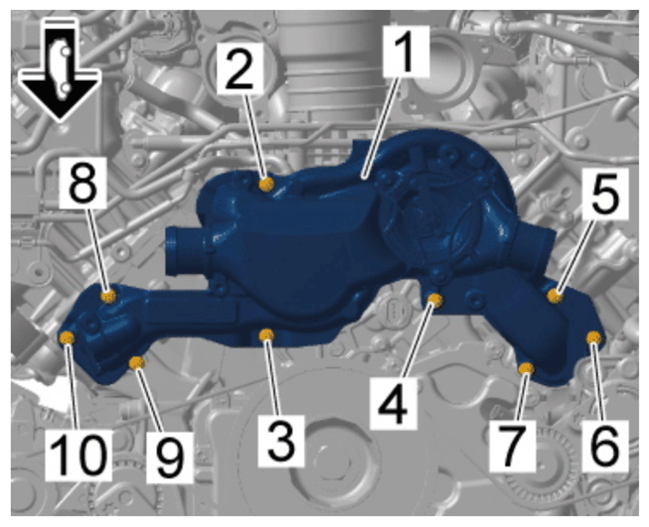

Fig 1: Coolant Regulator Housing Screws Loosening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on coolant regulator housing

1. 9.1  Unscrew screws -2 to 10-  .
2. 9.2  Remove coolant regulator housing -1-  .
