Installing Coolant Pump

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

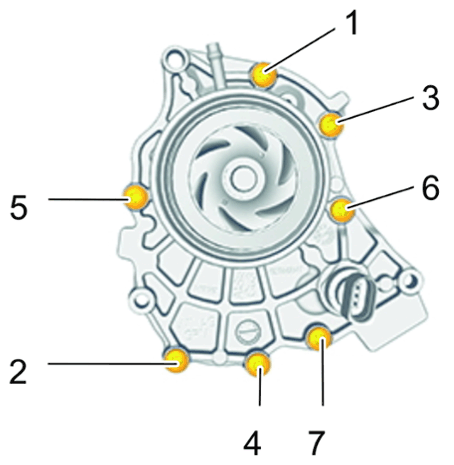

Fig 1: Coolant Pump Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for coolant pump screws
1. 1.1 Replace seal and O-ring.
2. 1.2 Tighten screws for coolant pump in the sequence -1 to 7- to > Tightening torque 9 Nm (6.5 ftlb.) .
