Component Information
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

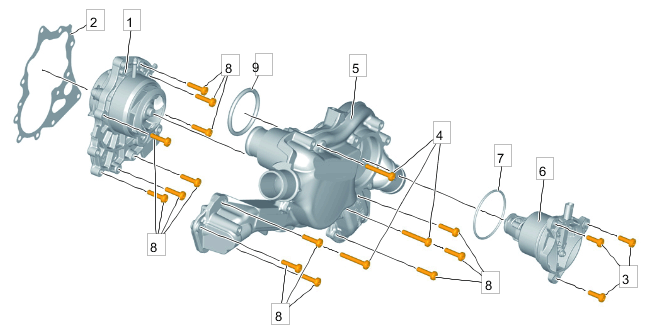

Coolant pump
| 1 |
Coolant pump |
| 2 |
Seal |
| 3 |
Screws, M6 x 30 |
| 4 |
Screws, M6 x 40 |
| 5 |
Coolant distributor housing |
| 6 |
Coolant regulator |
| 7 |
O-ring |
| 8 |
Screws, M6 x 25 |
| 9 |
O-ring |
