Removing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective rear.

Information

The steps to be carried out are described and shown for the pressure sensor on the left pressure pipe. They also apply for the pressure sensor on the right pressure pipe and can be used accordingly.

Remove pressure sensor at the relevant side -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

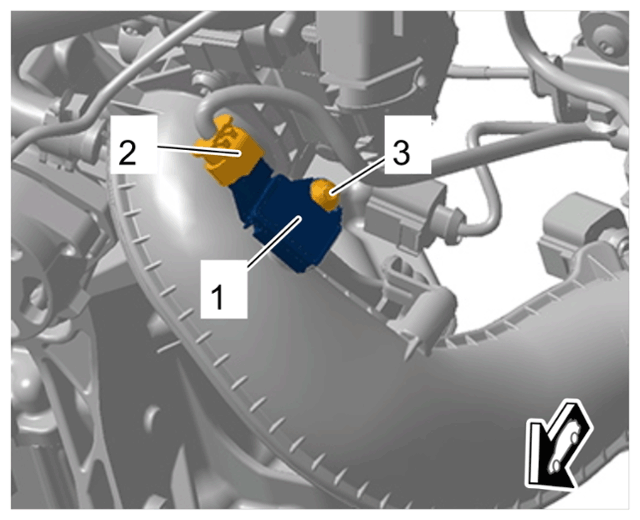

Pressure sensor (shown on left pressure pipe)
1. 1.1 Release and disconnect electric plug connection -2- .
2. 1.2 Unscrew screw -3- .
3. 1.3 Remove pressure sensor -1- .
